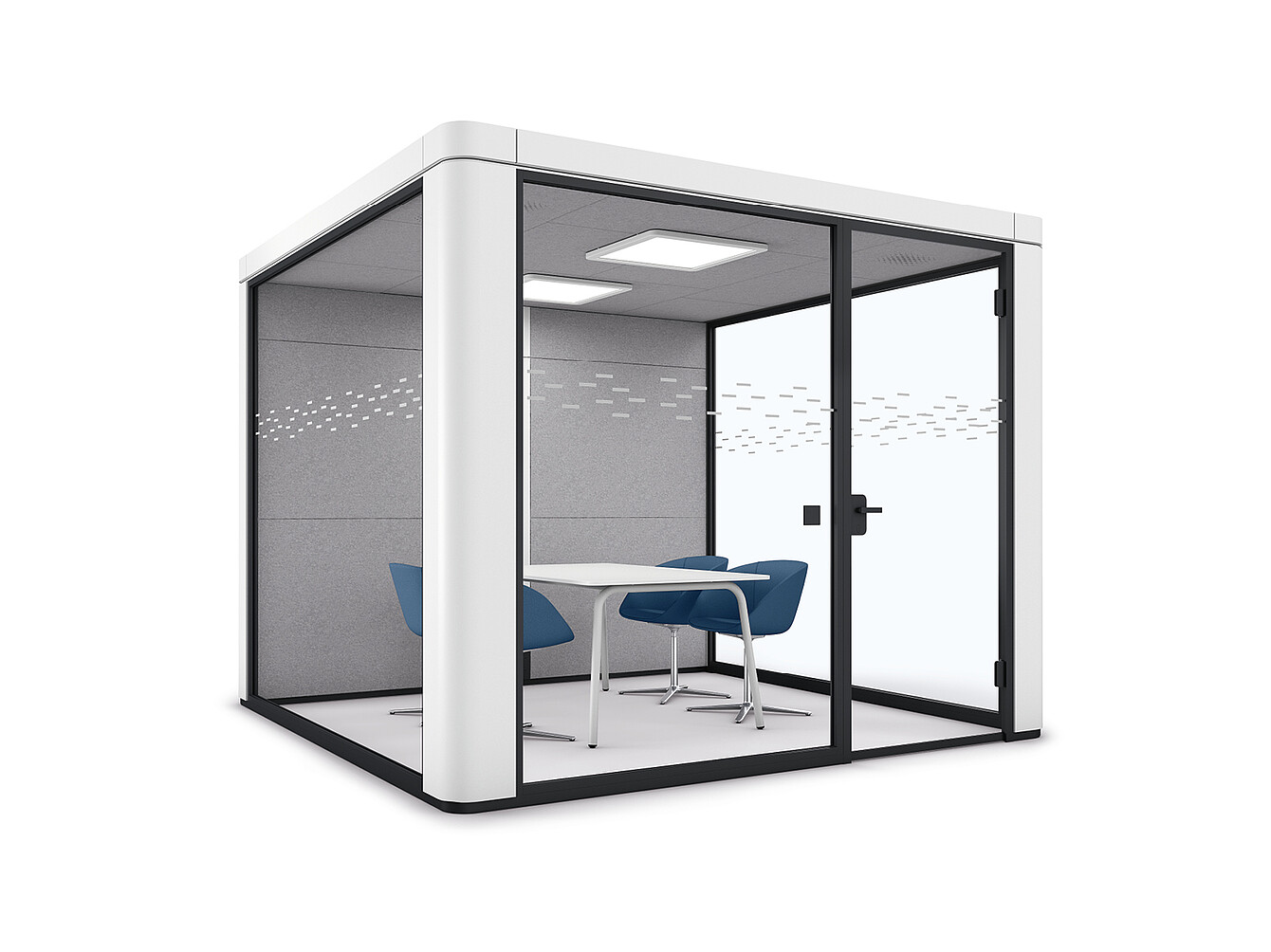

se:cube max

Room-in-room systems

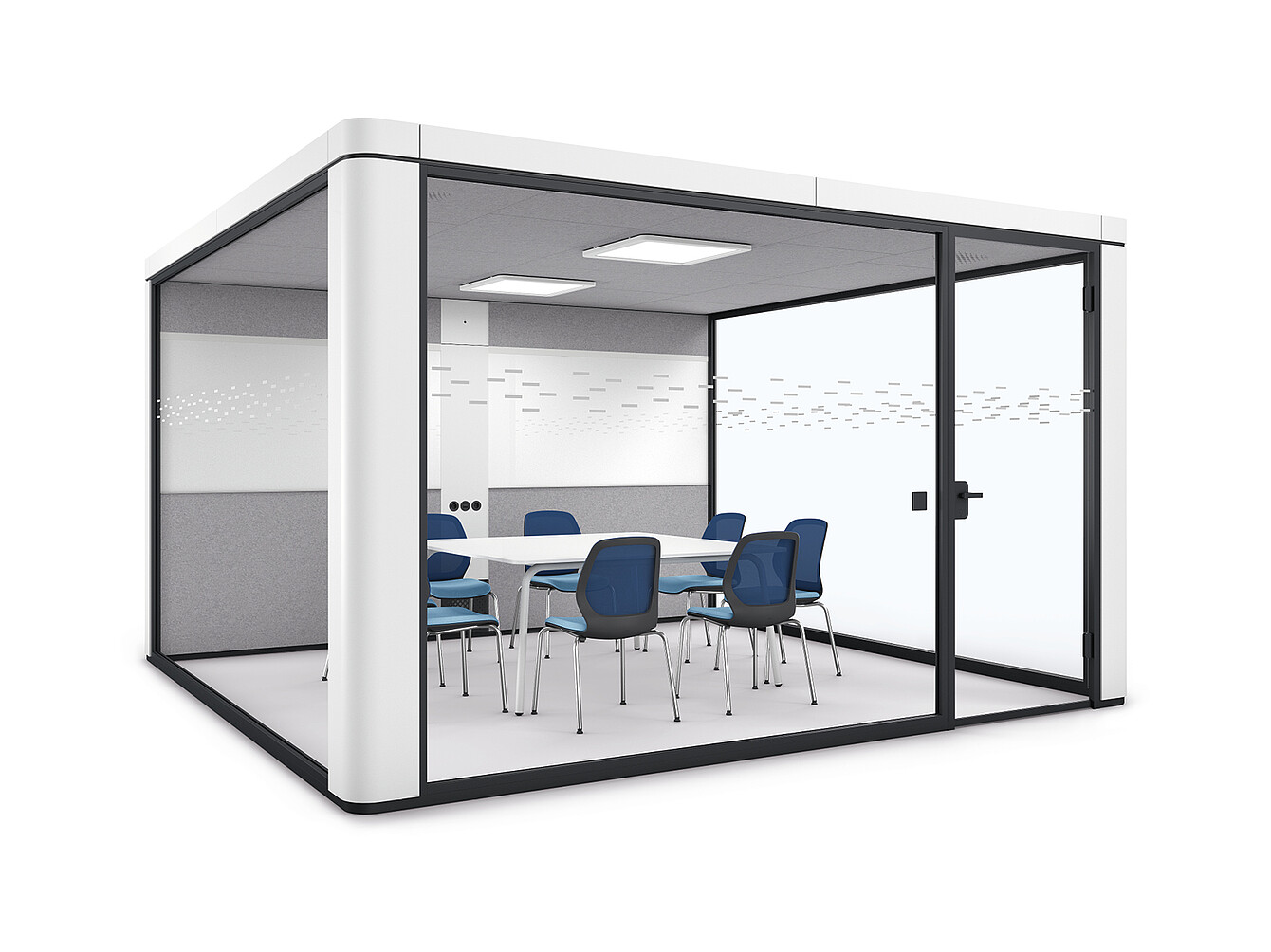

The sophisticated room-in-room system se:cube max complements the se:cube product family and offers large retreats for meetings, workshops and video conferences. The self-sufficient se:cube max can also be used as a single or double office in open-space landscapes. The base-free room-in-room system is not connected to the building structure and can, therefore, also be placed on surfaces with integrated floor heating.

Design your own unique Sedus product – after all, maximum comfort requires customised solutions.

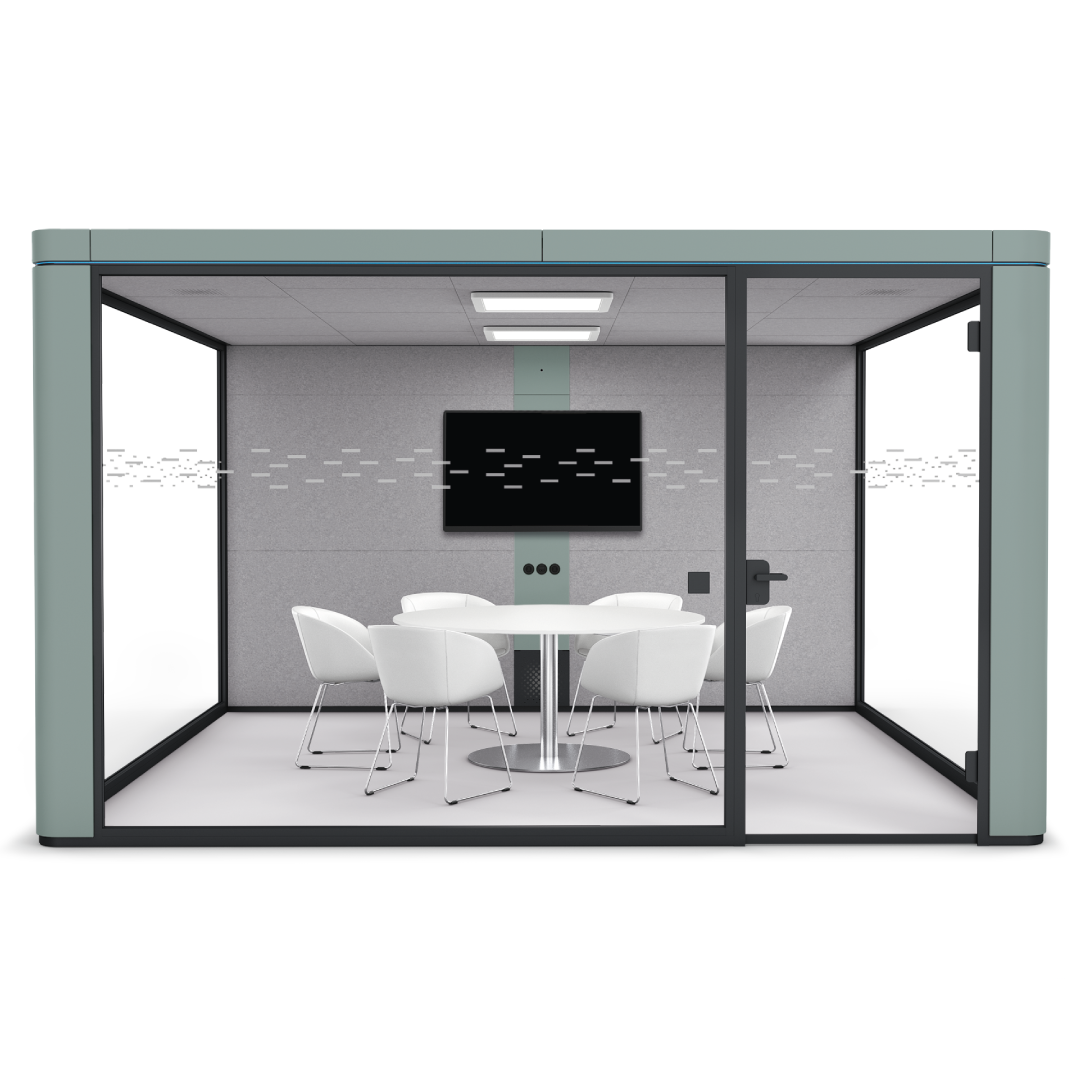

Our configurator guides you step by step through the various options and customisation possibilities of the product. At the end of the configuration process, you can request a non-binding quote, download images and planning data and test the product directly in the room using augmented reality.

You can call up your personal configuration again at any time using your personal PIN code – just save it, come back later and make adjustments. Let's go!

CONFIGURE PRODUCT NOW

Different versions and sizes are available for the se:cube max. The door side is always fully glazed. In addition, one or two other sides can be glazed.

se:cube max S
3 x 3 m

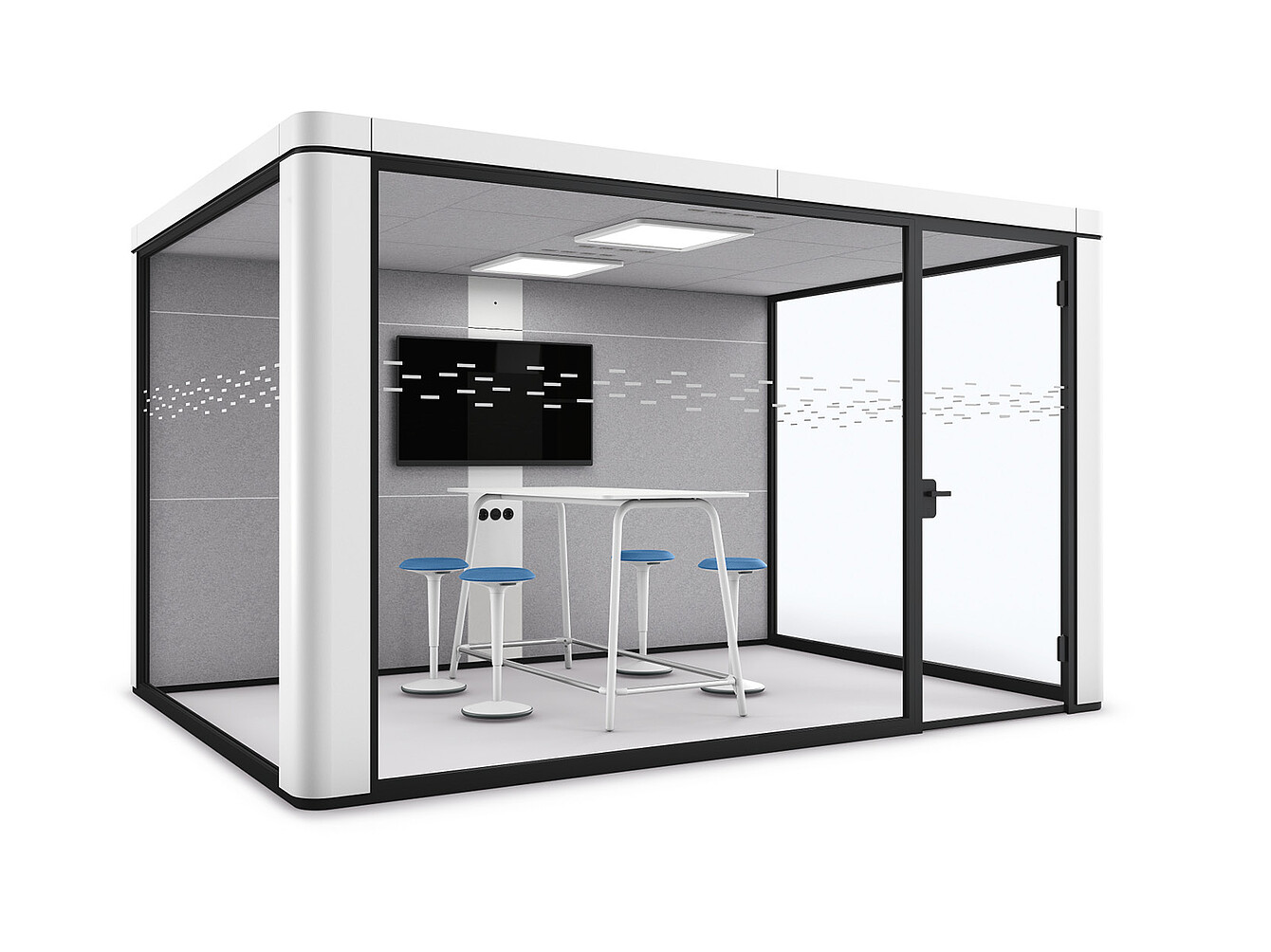

se:cube max M
4 x 3 m

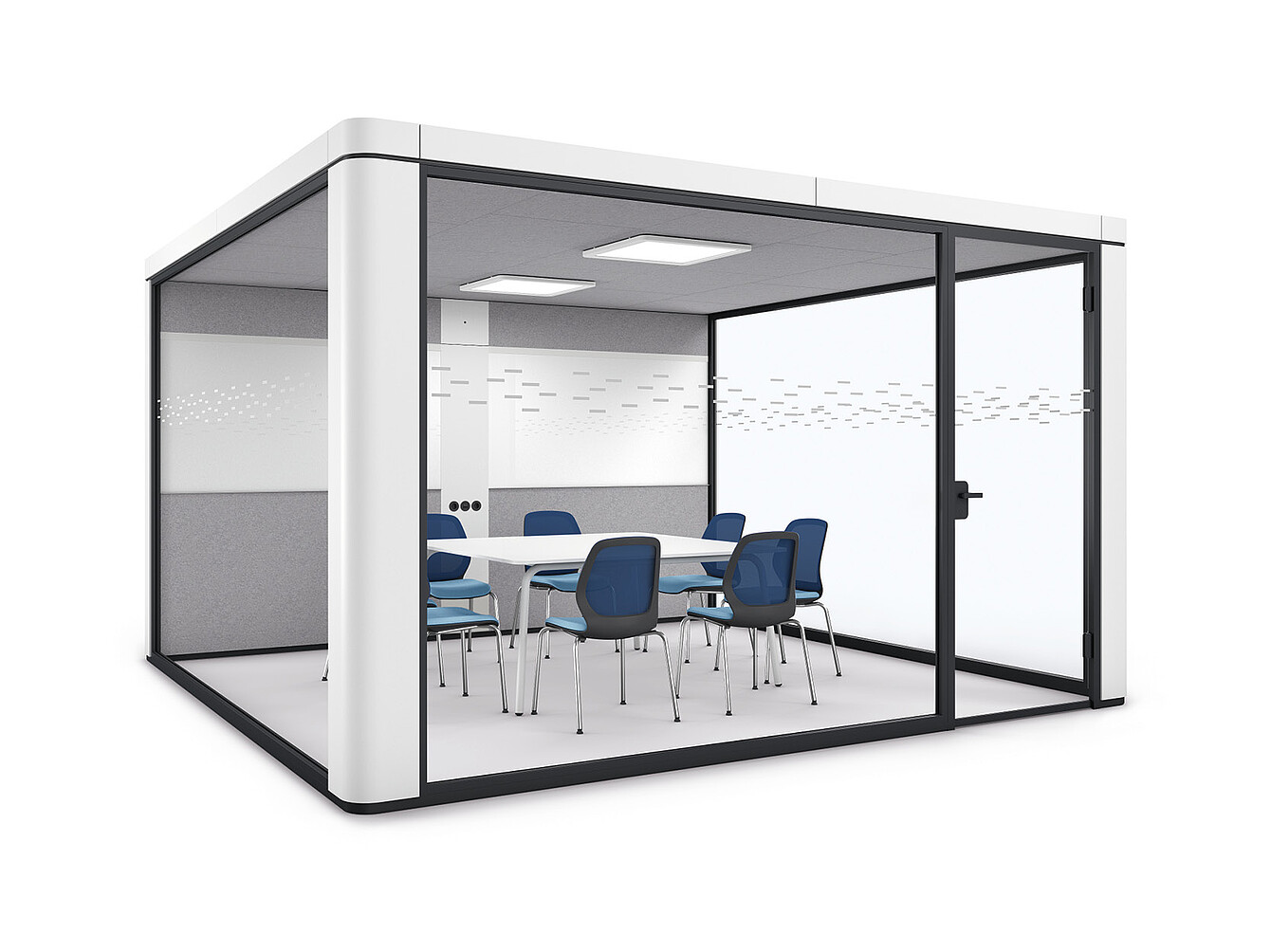

se:cube max L
4 x 4 m

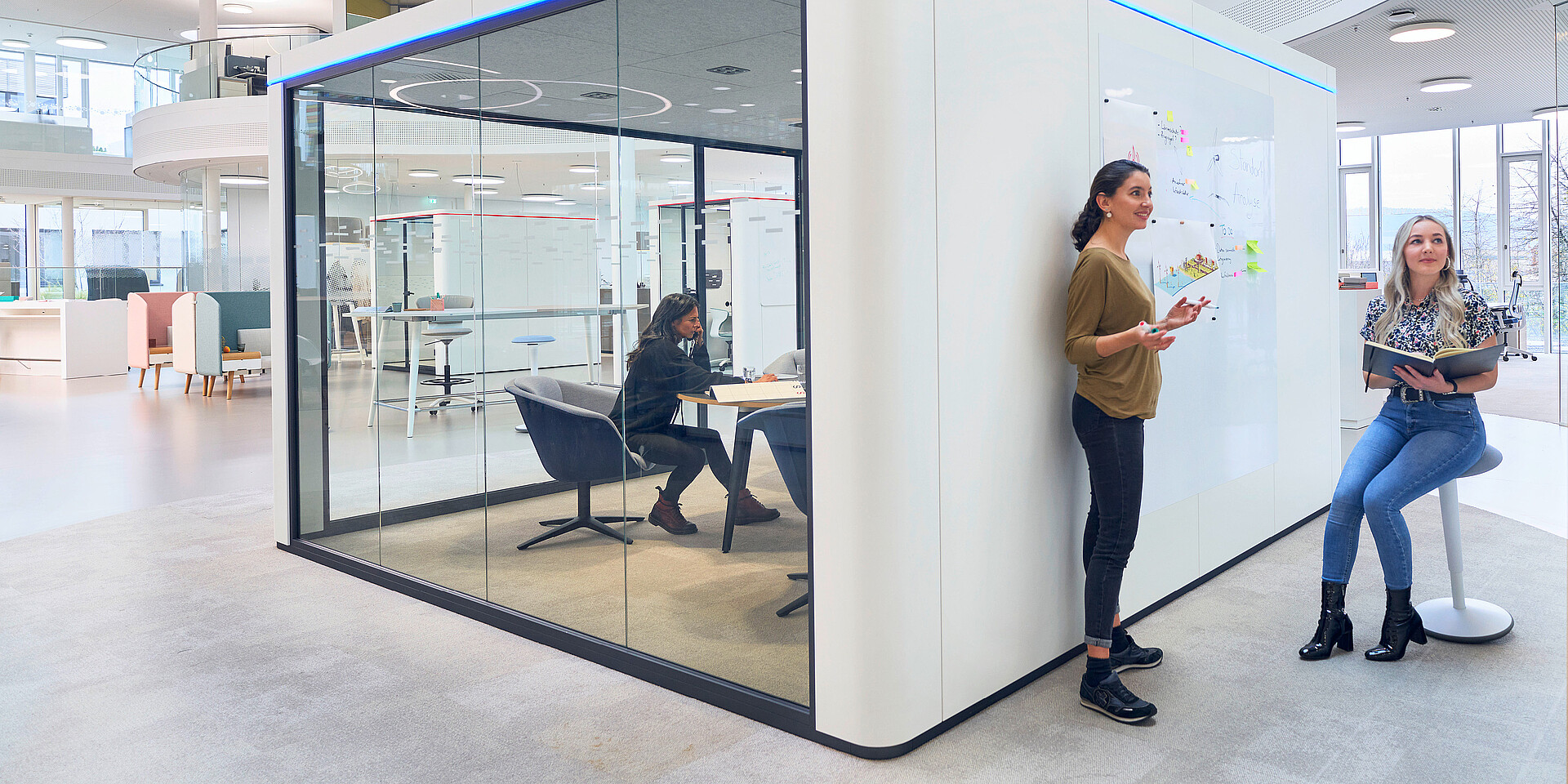

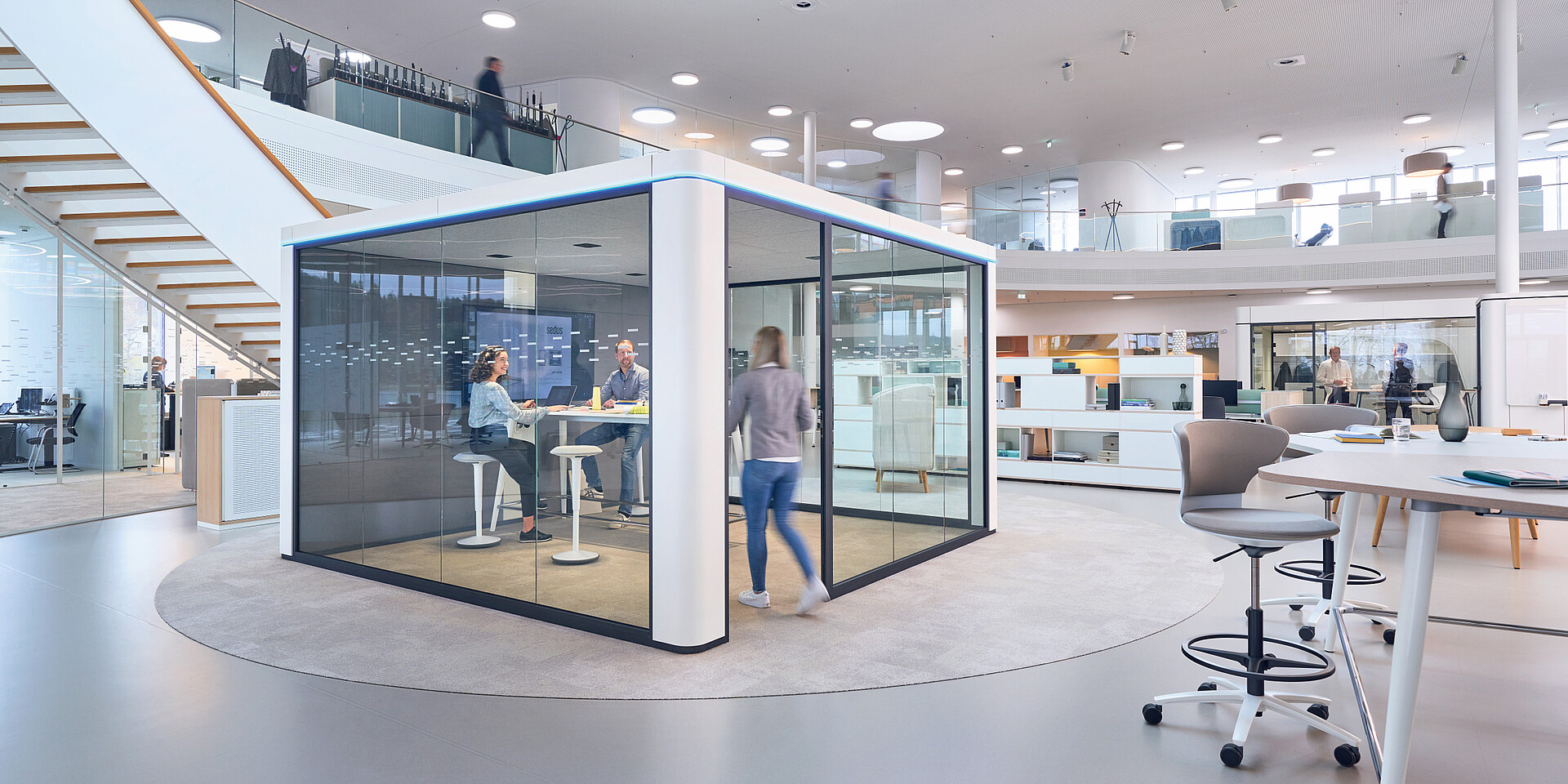

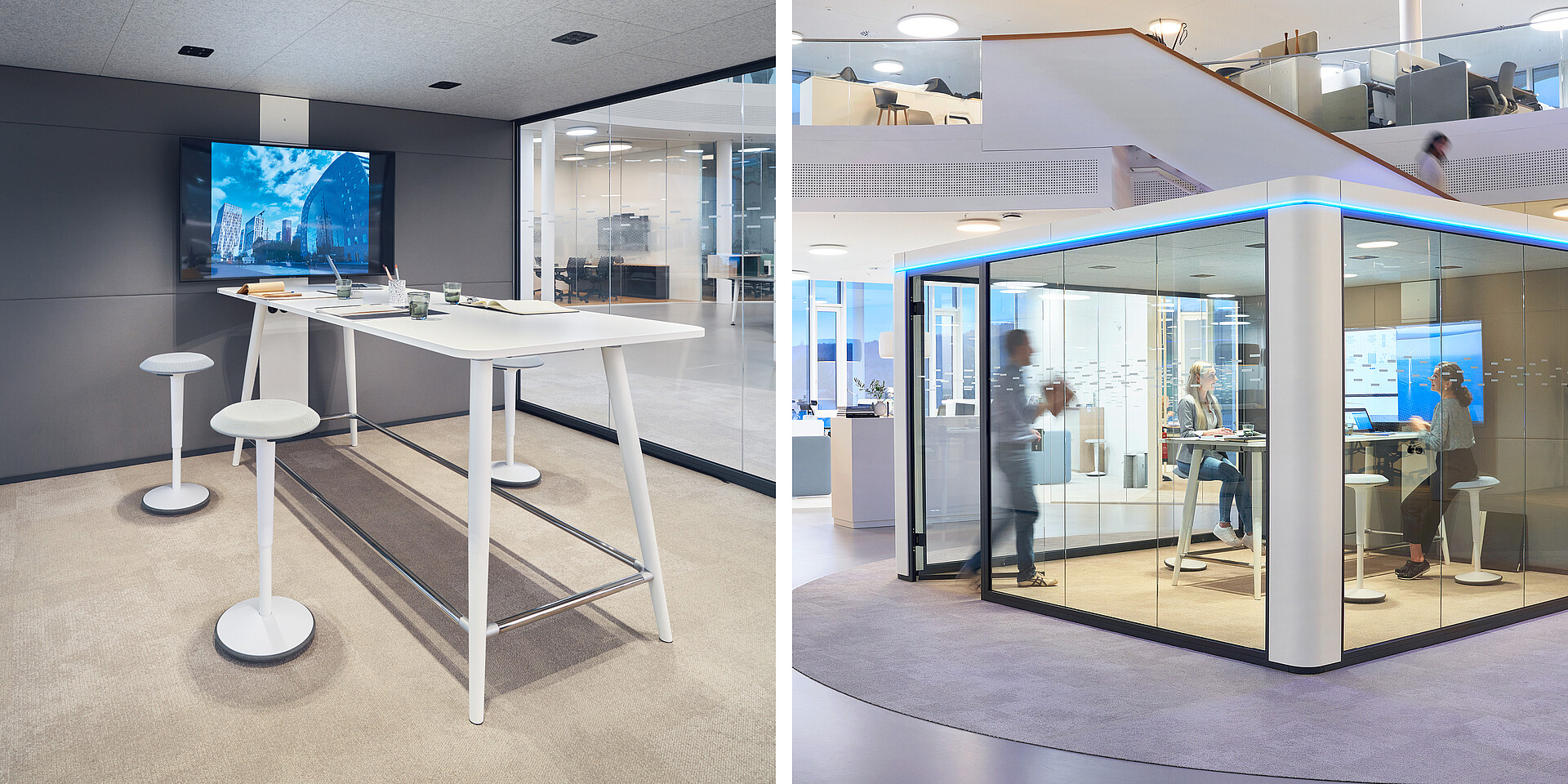

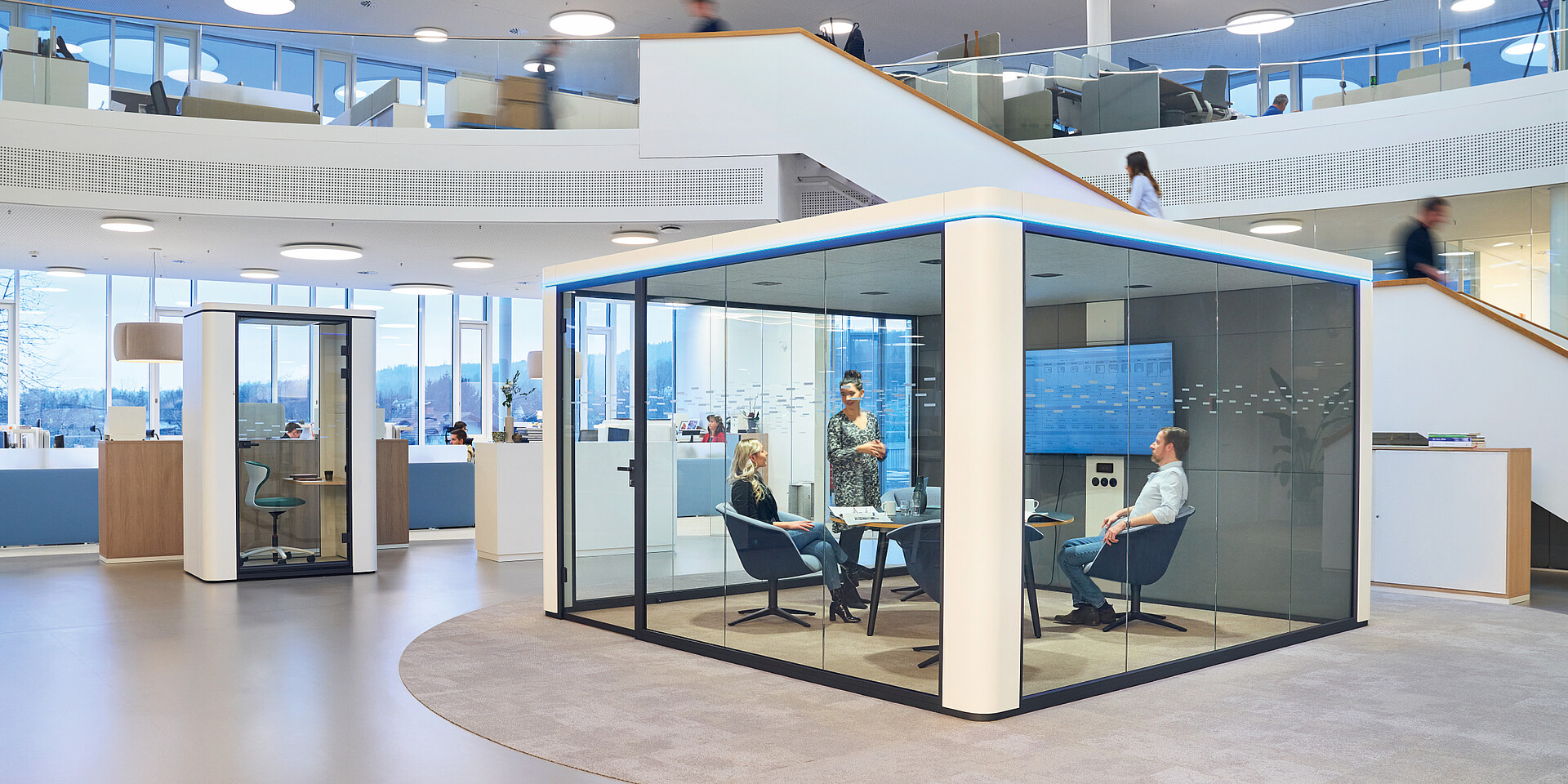

Impressions

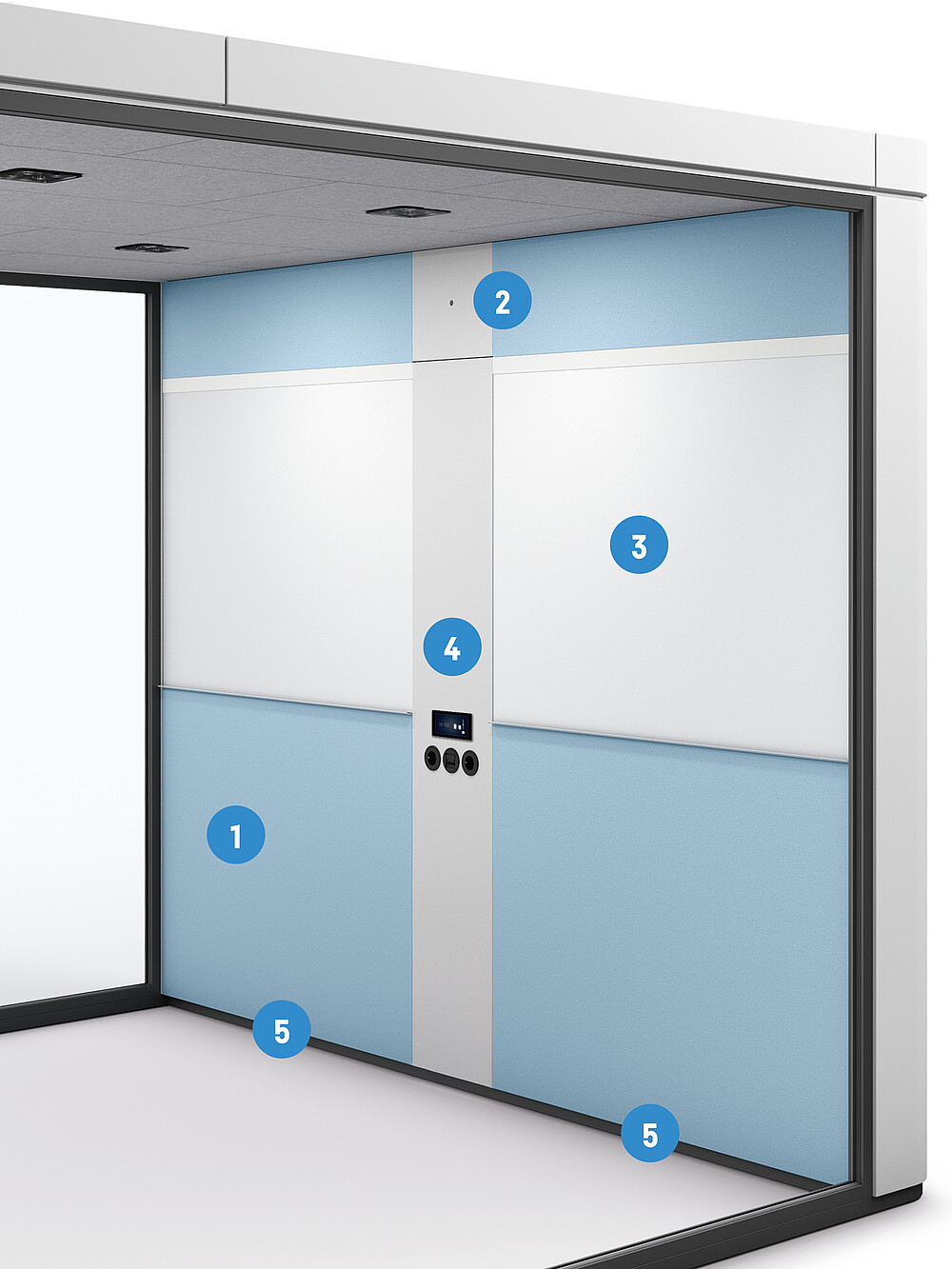

Technical wall

At least one wall is always designed as a closed technical wall. It is the core of the se:cube max and contains the ventilation unit as well as all necessary connections for the room’s power supply.

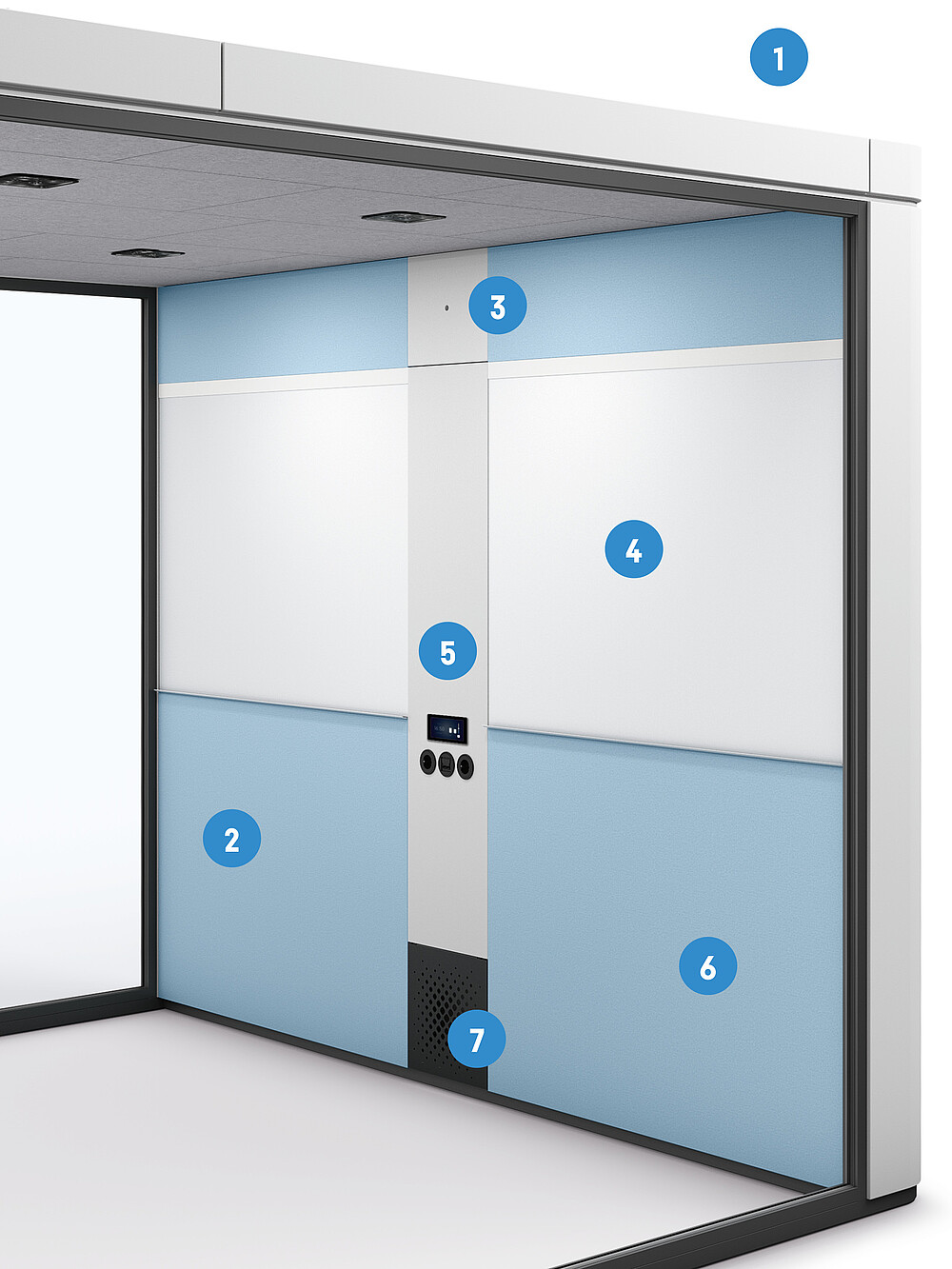

Structure of the technical wall

Air outlet for exhaust air (in the ceiling)
Fabric-covered or PET felt-covered panels on the technical wall improve room acoustics
Presence detector
As an option, it is possible to use a whiteboard in the middle section

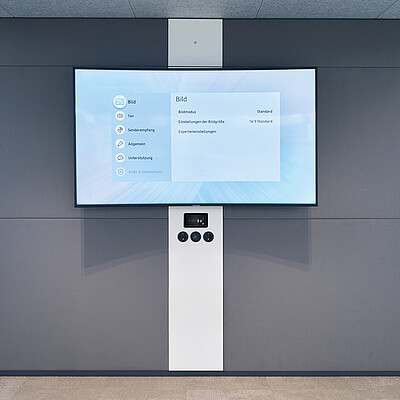

Technical panel:
1. hides cables and power supply
2. connections: 2× power, 1× USB charger
3. monitor mounting option (standing or sitting height)
Concealed fan and sound-insulated exhaust air ducts inside the technical wall
Air inlet for stale air from the interior and inspection flap for replacing the air filter

Presence lighting

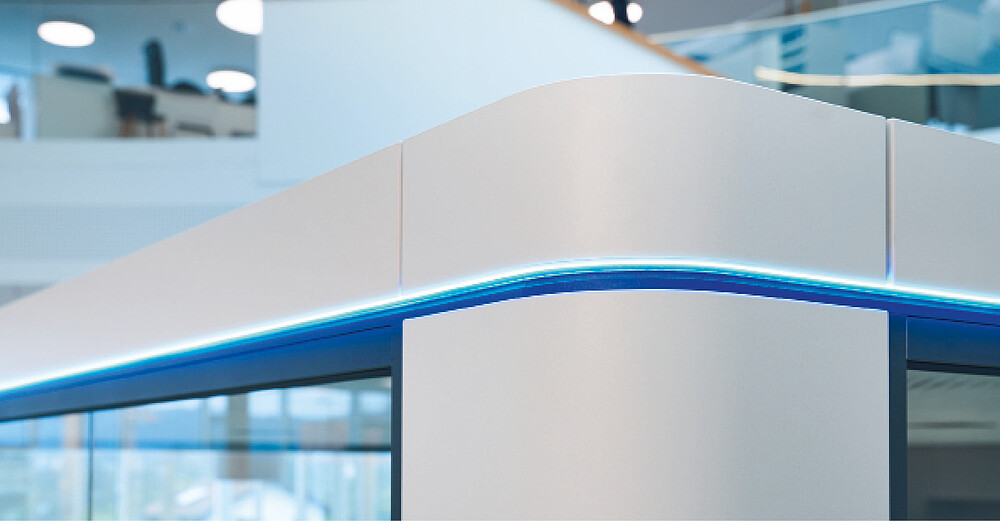

A glowing red or blue LED line indicates that the se:cube max is currently occupied.

Air inlets in the ceiling

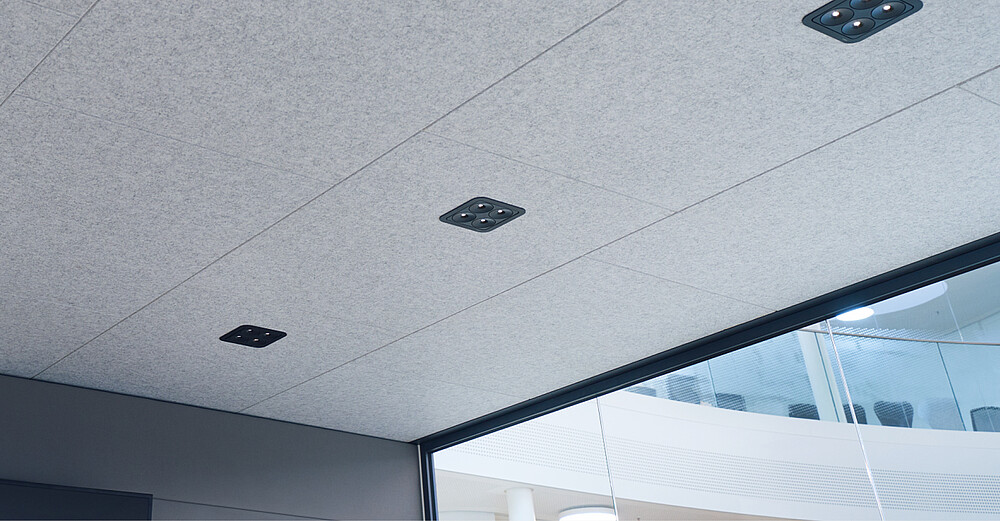

Fresh air is drawn into the room via an invisible sound absorber integrated in the acoustic ceiling.

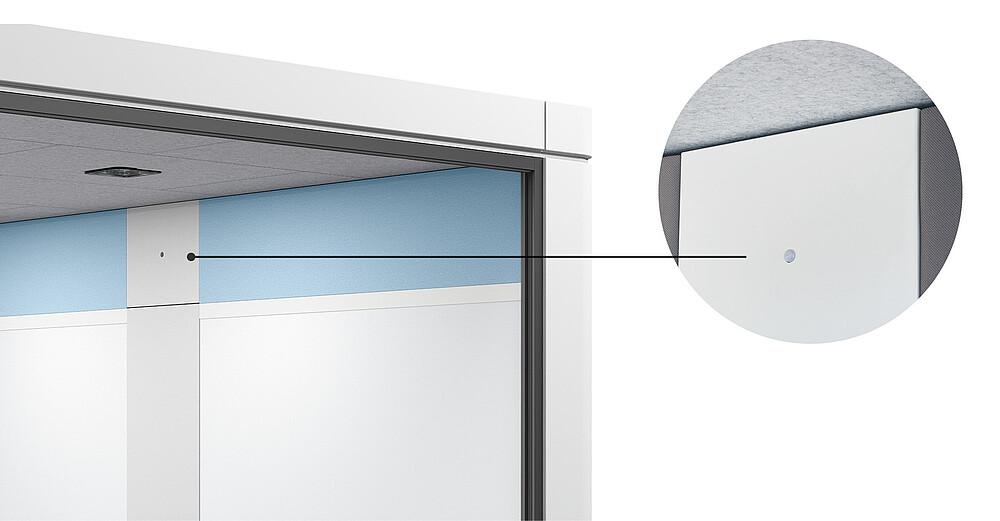

Presence detector

The presence detector is used for fully automatic lighting and ventilation control.

Concealed fan

Air inlet for stale air from the interior and inspection flap for replacing the air filter.

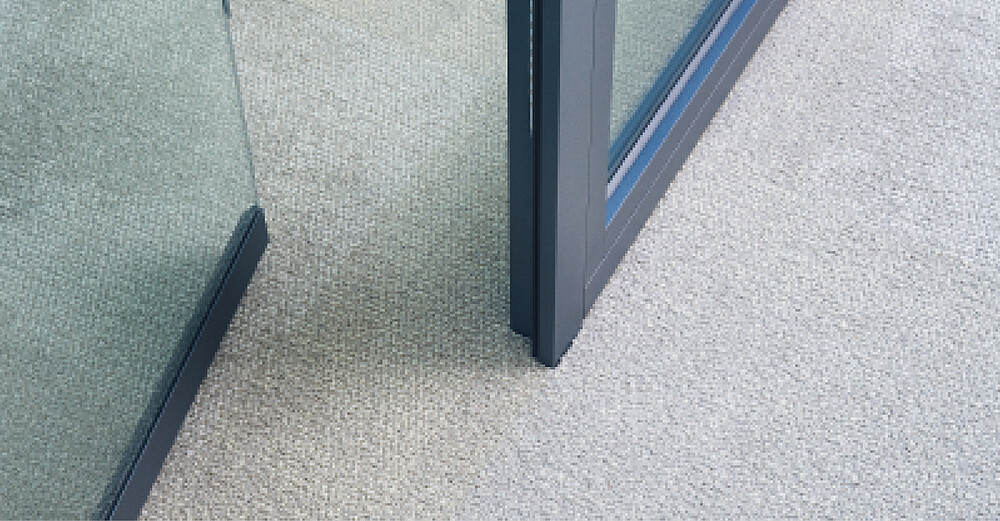

Wheelchair-accessible

se:cube max is placed on the existing building infrastructure without a base and is wheelchair-accessible as there is no door threshold.

Lighting on demand

Depending on the application, various lighting set-ups are available for the se:cube max:

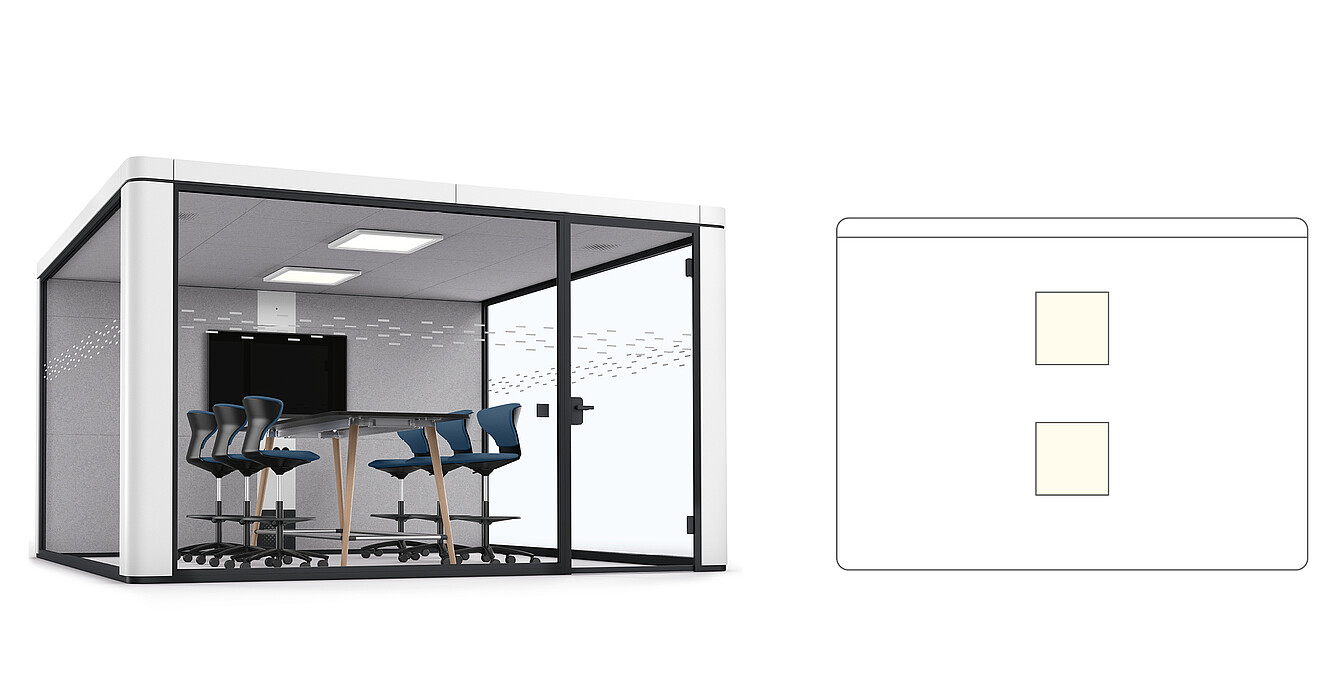

1. Meeting lighting set-up
In this set-up, two LED panels are mounted in the centre of the room and perpendicular to the technical wall. This allows for homogeneous illumination of the workspace when a conference table is set up facing the technical wall. Users can choose between dimmable lighting and a version with colour temperature change and HCL control.

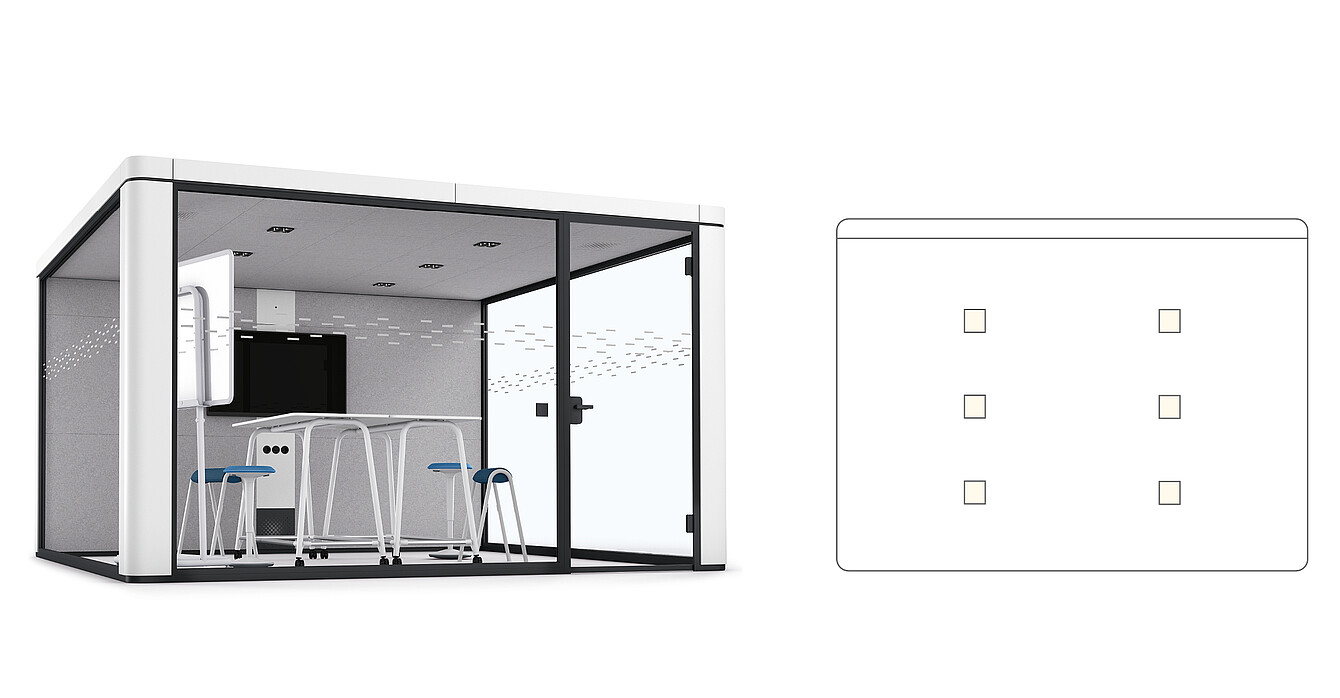

2. Workshop lighting set-up
Depending on the size of the room, 4 to 6 dimmable LED luminaires are evenly distributed across the room and integrated flush into the ceiling. The widearea illumination of the room is optimal for movable furniture on castors and is thus ideally suited for workshop environments.

Good acoustics for every place

The sound insulation of the se:cube max is so good that the room-in-room system can be positioned in the middle of an office without neighbouring areas interfering with each other in terms of acoustics. se:cube max uses ceiling and wall absorbers specifically made for this purpose. The following factors also influence the room acoustics of the se:cube max: flooring, number of glazed or closed walls, interior design.

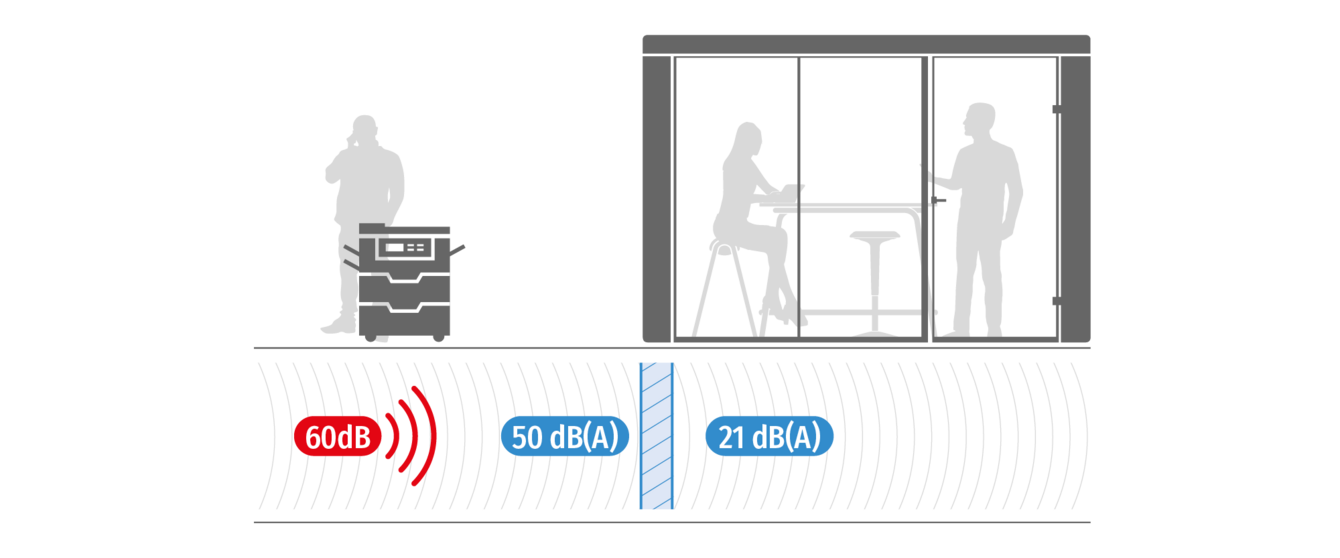

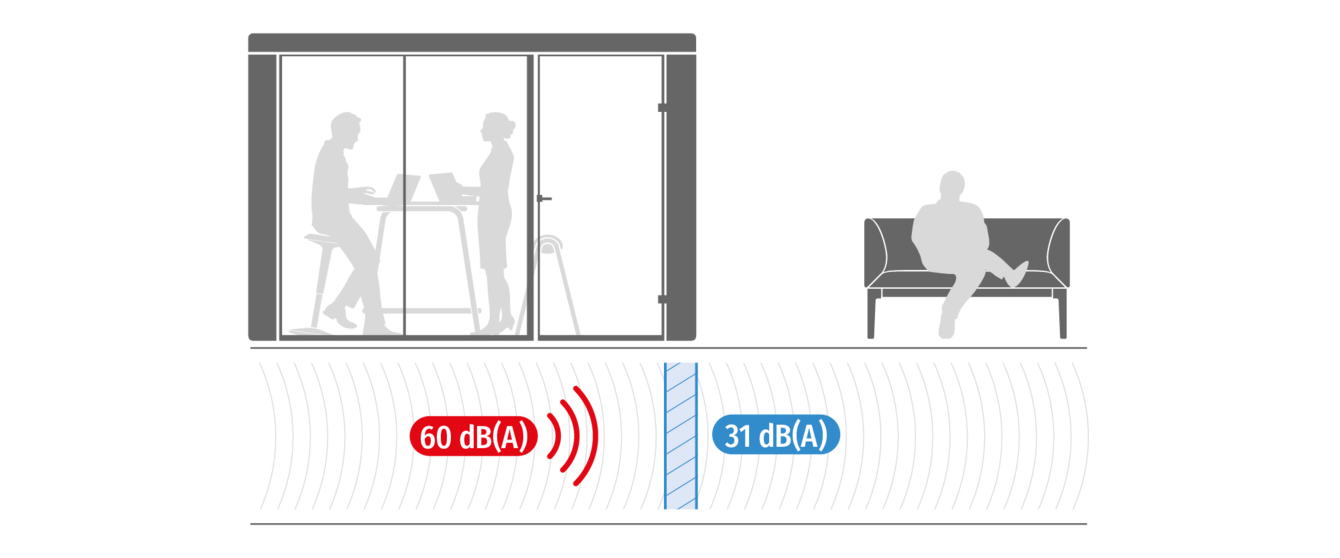

se:cube max is a closed-off room with acoustically effective components which interrupt the propagation of sound and improve speech intelligibility inside. The sound level reduction is 29 dB(A)*. Disturbing noises from the outside are not eliminated completely, however, they are significantly reduced.

^{*according to DIN EN ISO 11957 (2010)}

Office noise is reduced such that it is hardly perceptible inside.

In a typical office environment, conversations inside the se:cube max are no longer comprehensible outside.

The PET felt panels in the ceiling and the fully insulated technical wall improve the reverberation time of the room-in-room system.

Fresh air and quiet ventilation

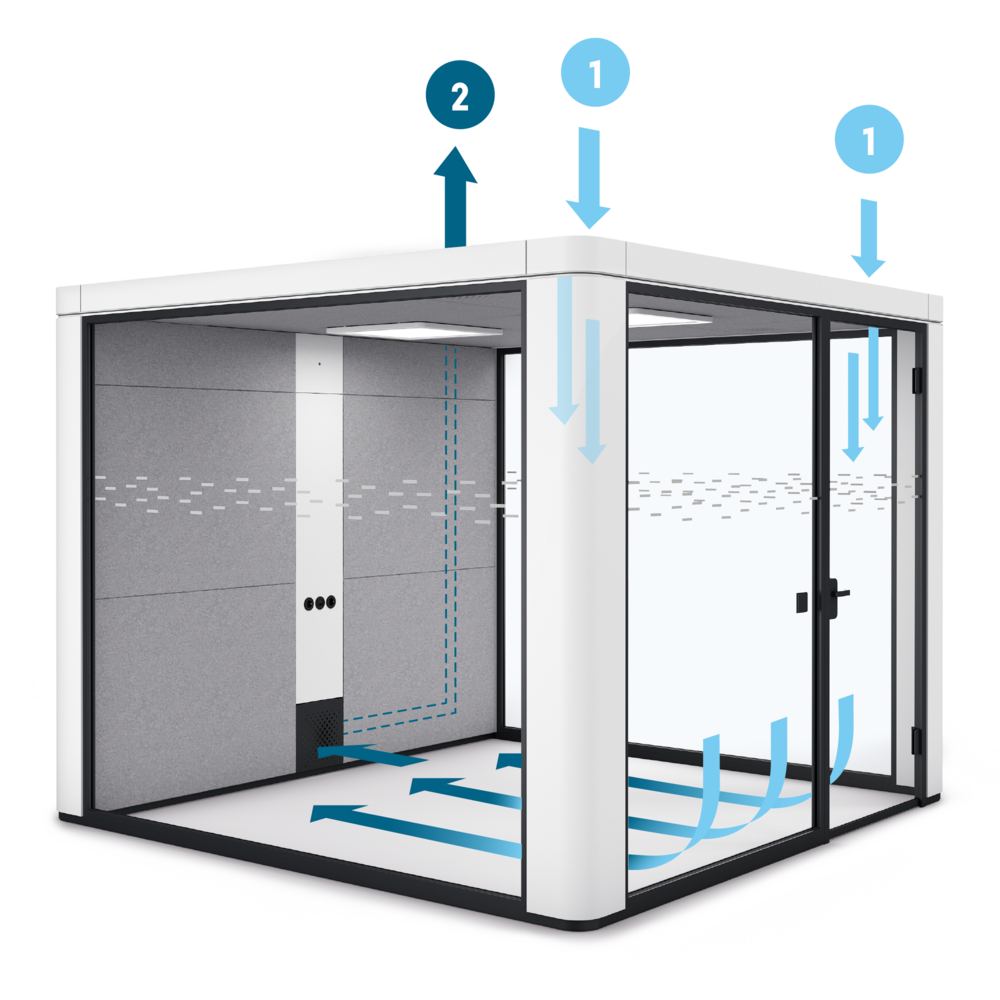

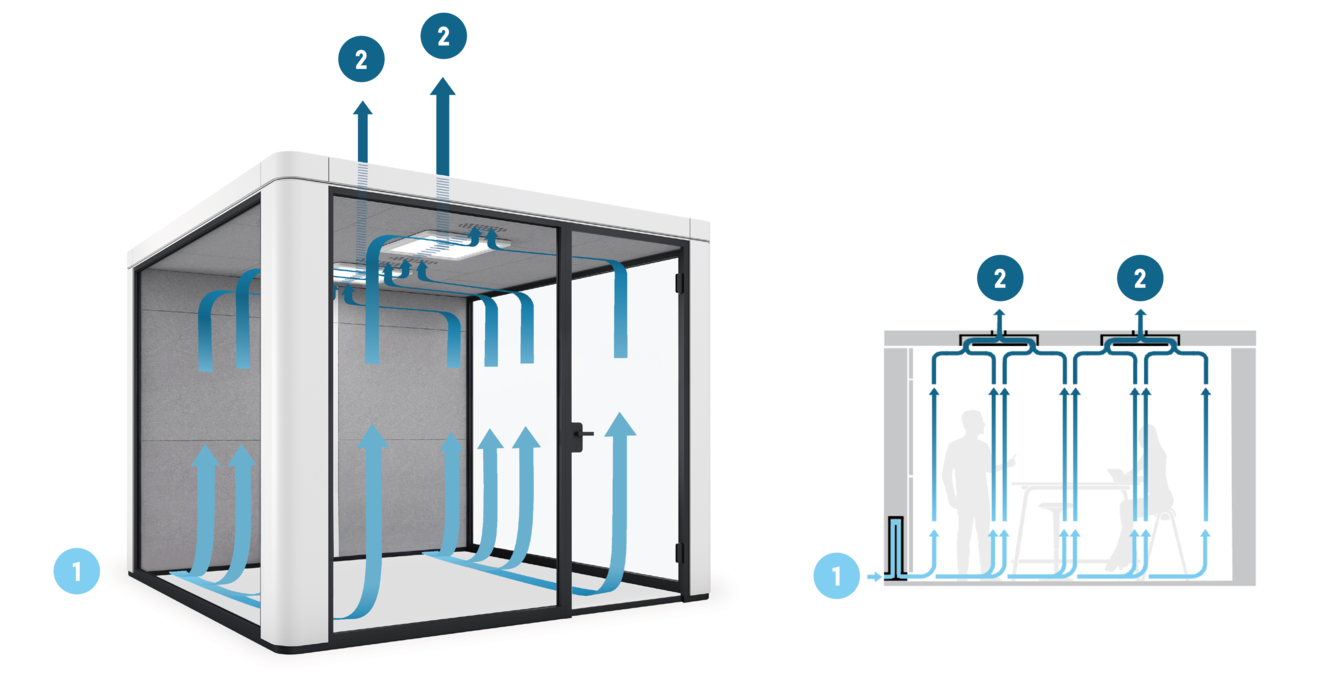

With the independent ventilation of the se:cube max, fresh air is supplied via the air inlets in the ceiling. The stale air is drawn into the lower part of the technical panel and released back into the surrounding room via the fans above the technical panel.
Large cross-sections and sound-insulated ventilation ducts ensure that the room is extensively ventilated and that, at the same time, noise is not transmitted. This means that the process is quiet and there is no perceivable draught. An additional air filter can be integrated as an option.

Ventilation control is fully automatic via a presence detector with a temperature sensor and CO2 sensor. There is also an option to order a remote switch for manual operation.

^{1. Fresh air
2. Exhaust air}

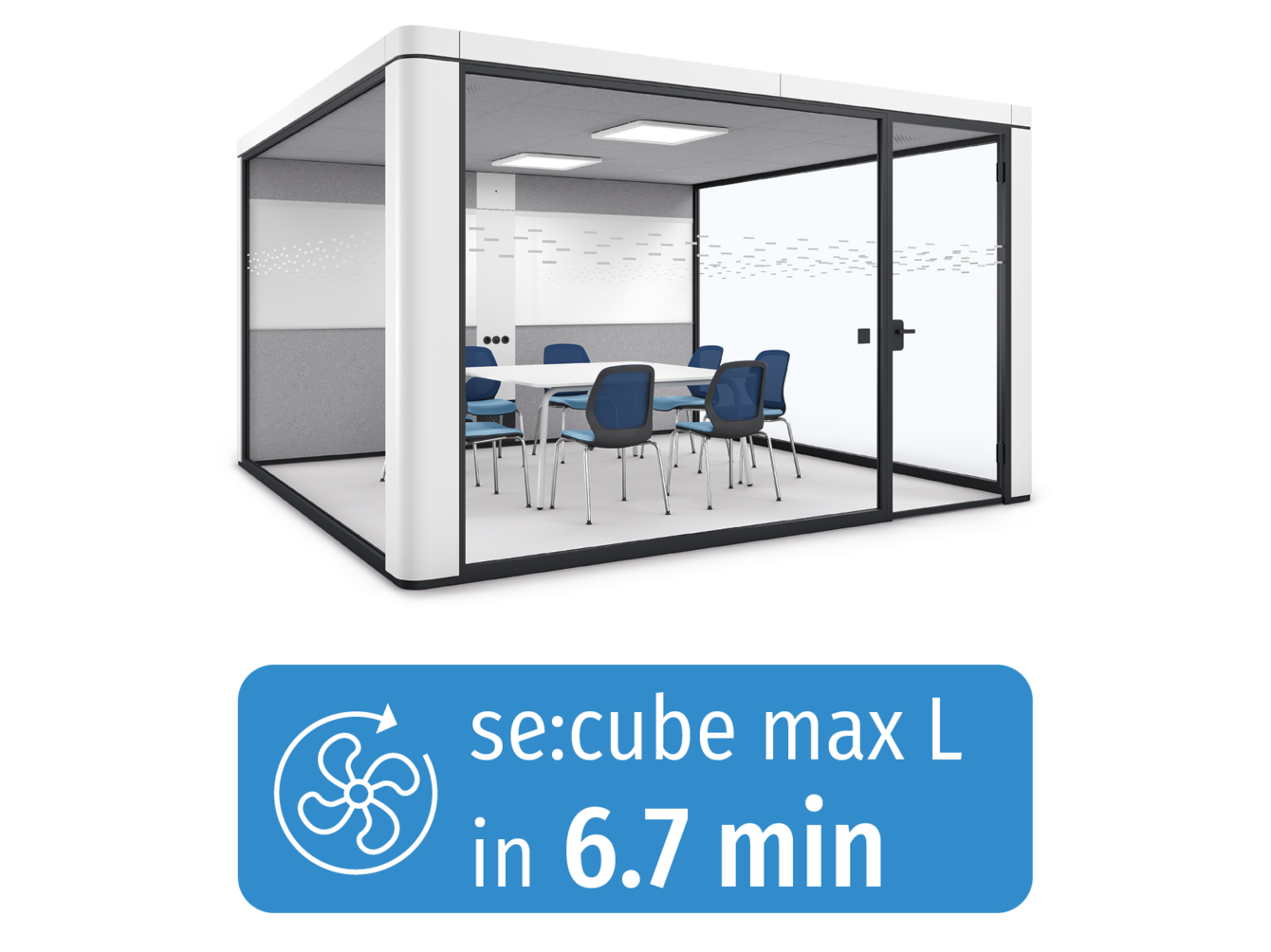

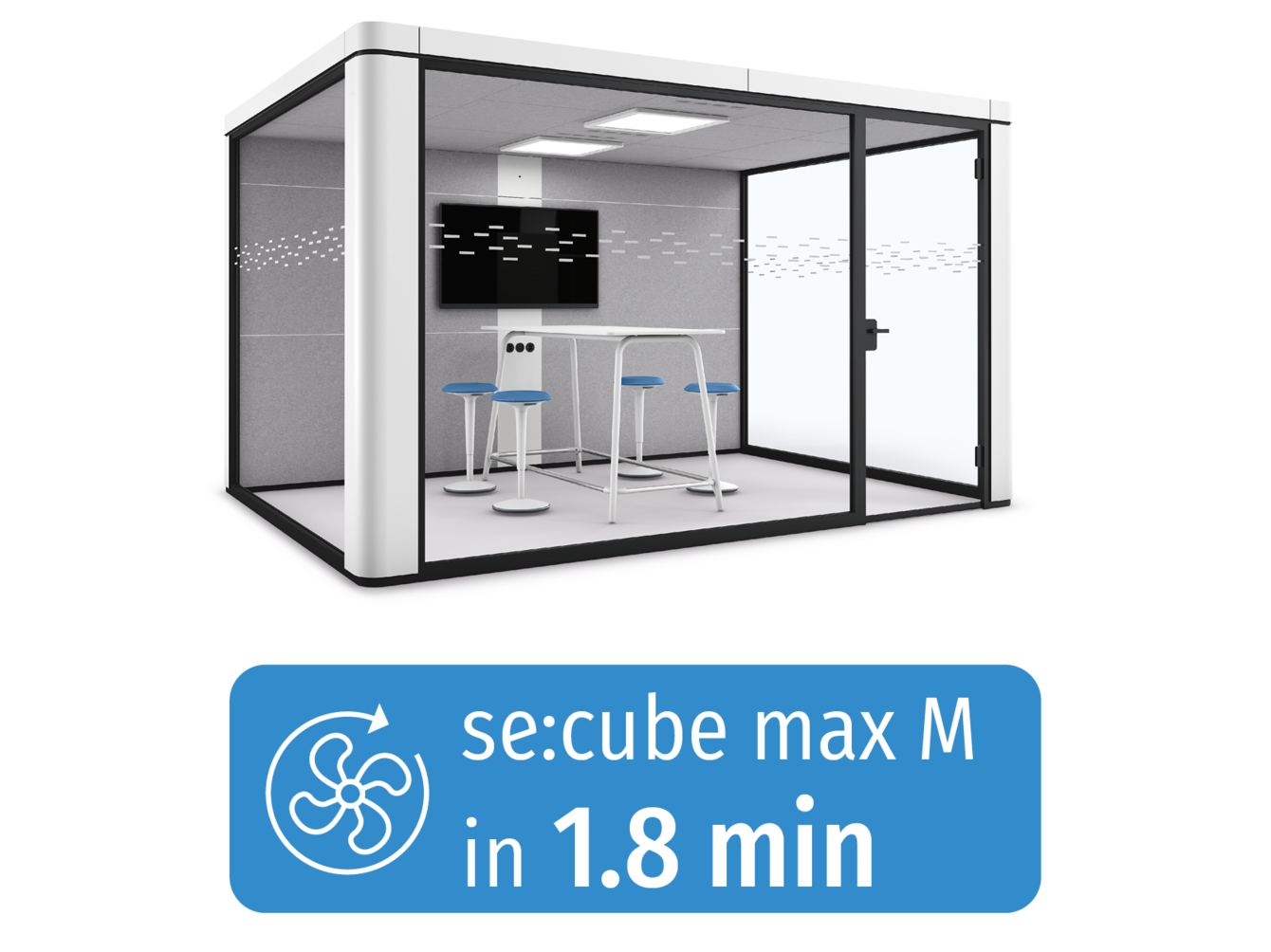

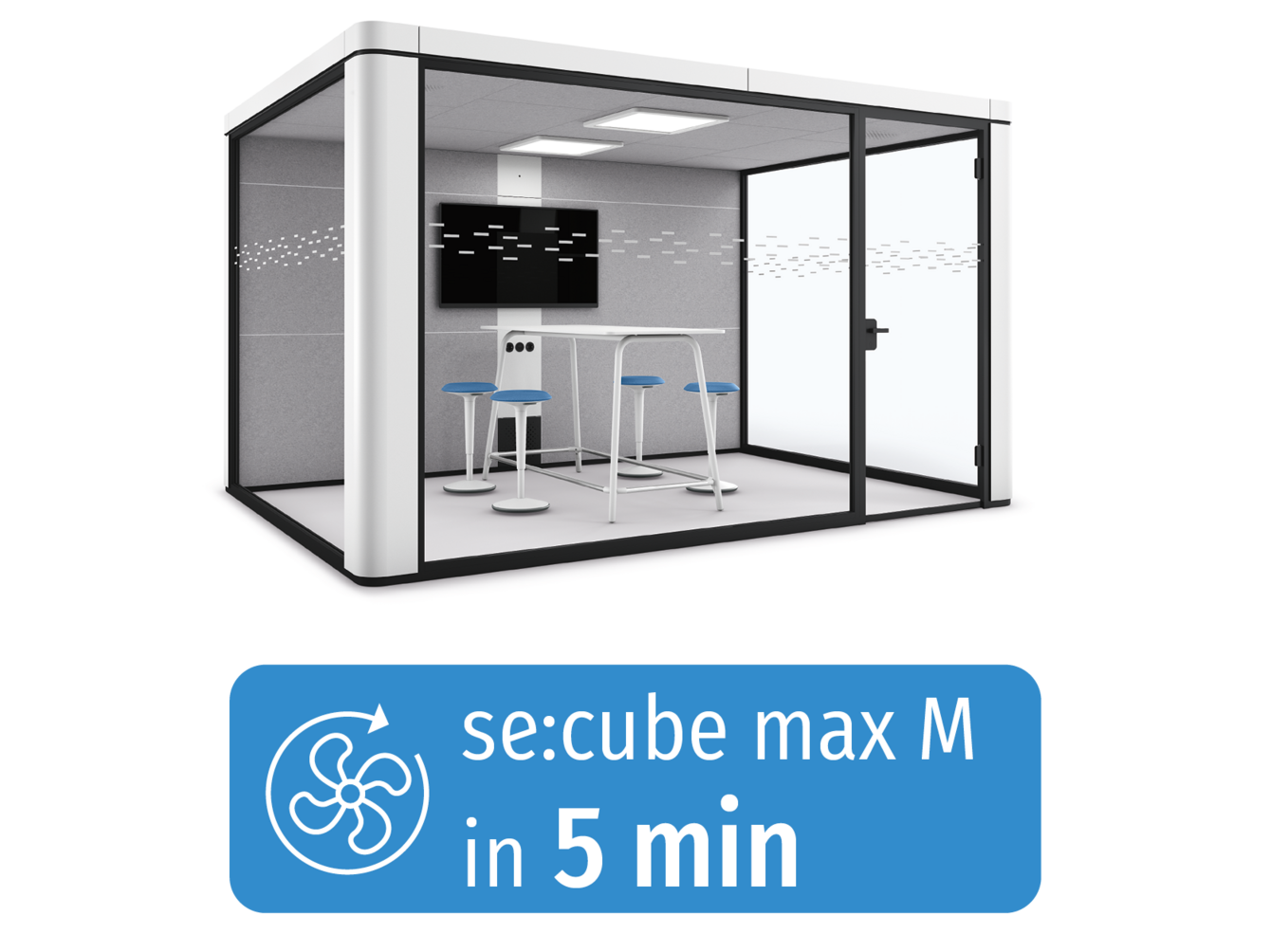

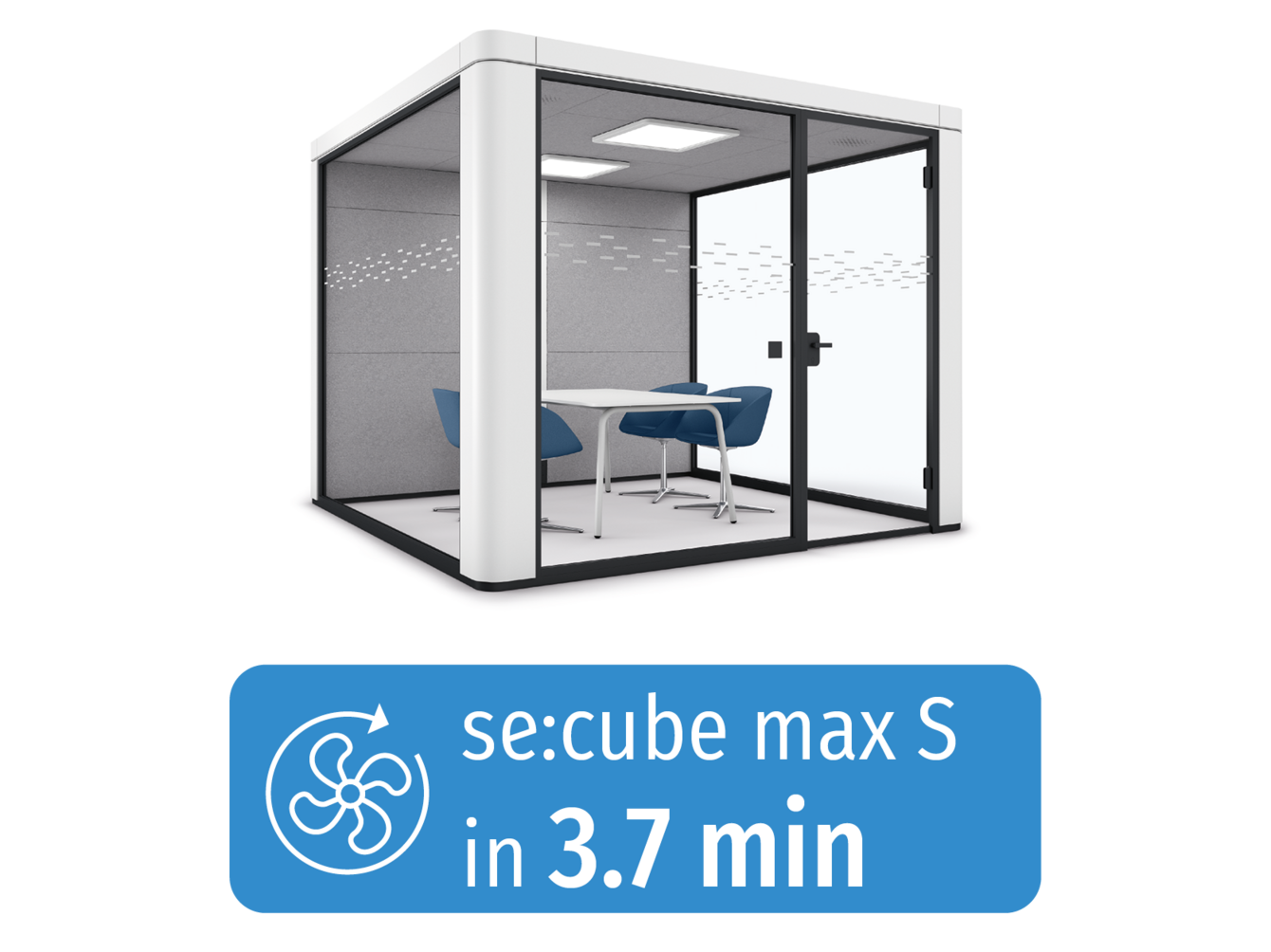

Complete exchange of air at 100% fan power

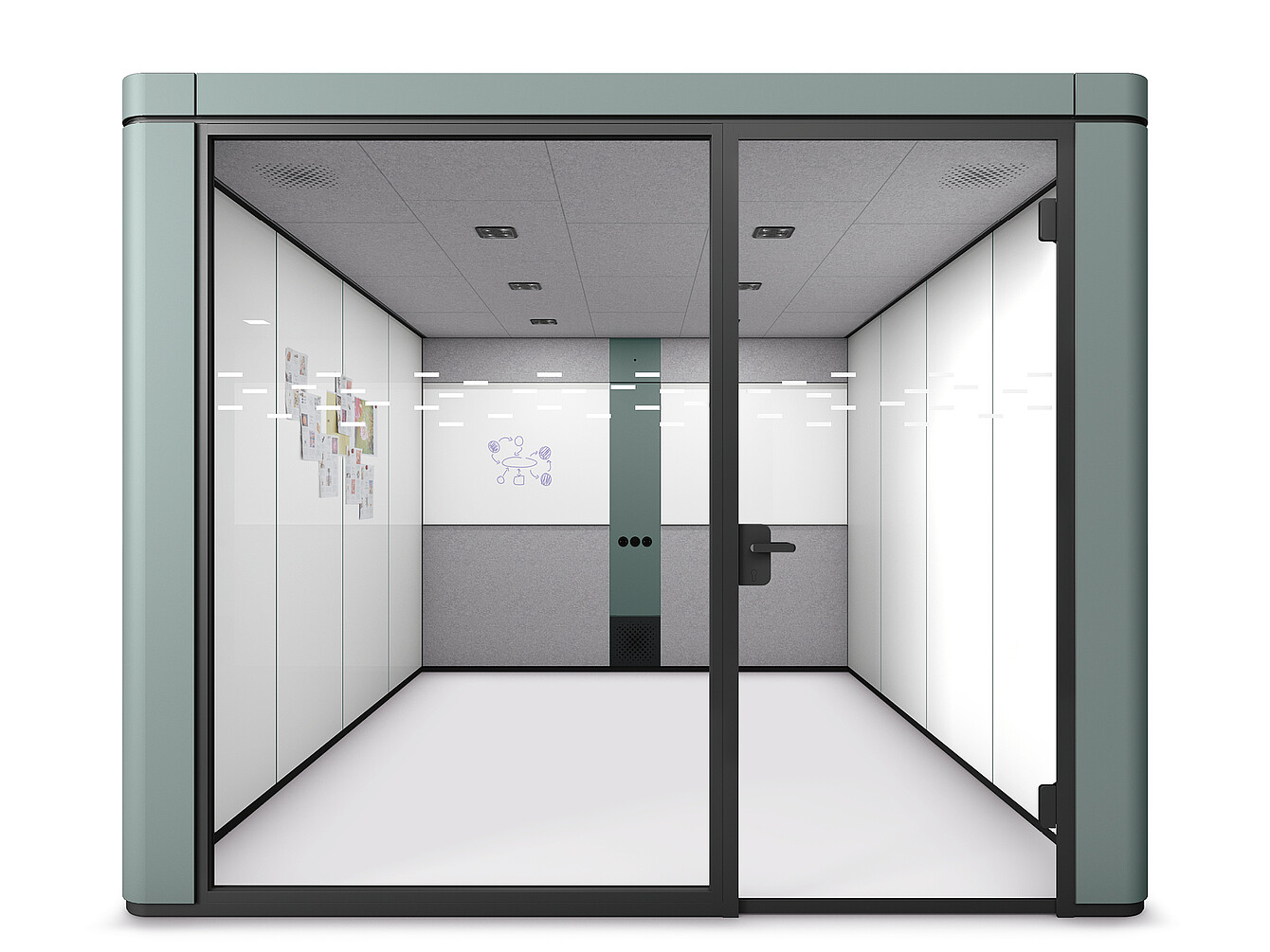

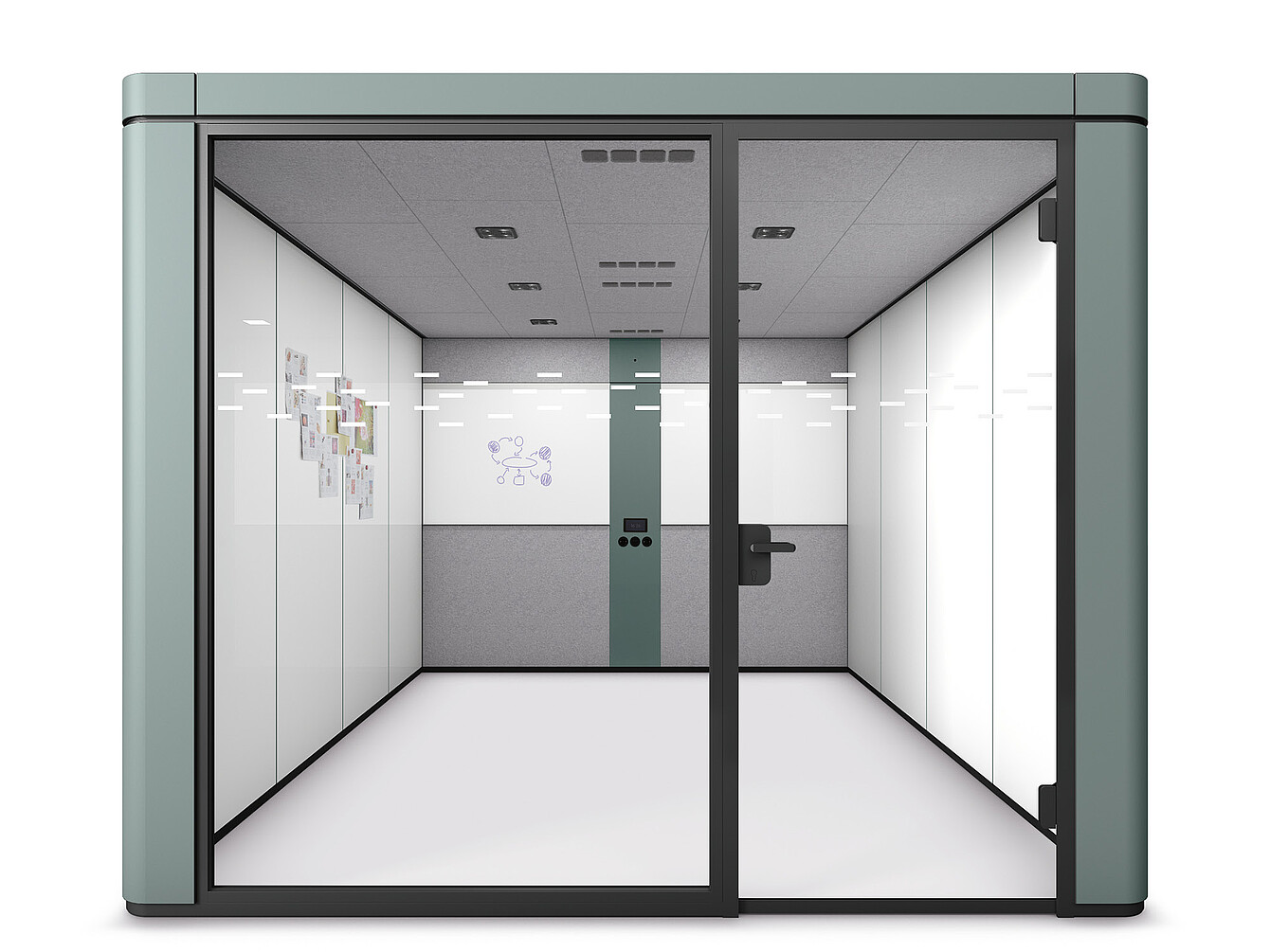

Interior and exterior walls with whiteboard

The upright wall panels of the closed walls of the se:cube max can be configured with writable whiteboard surfaces both on the inside and outside. The panels can be easily exchanged at a later date without using any tools. On the technical wall with the horizontal panels, the middle panel can also be supplemented with a whiteboard. It is also possible to mount a screen, in addition to a whiteboard.

Whiteboard panel on the technical wall and closed interior wall

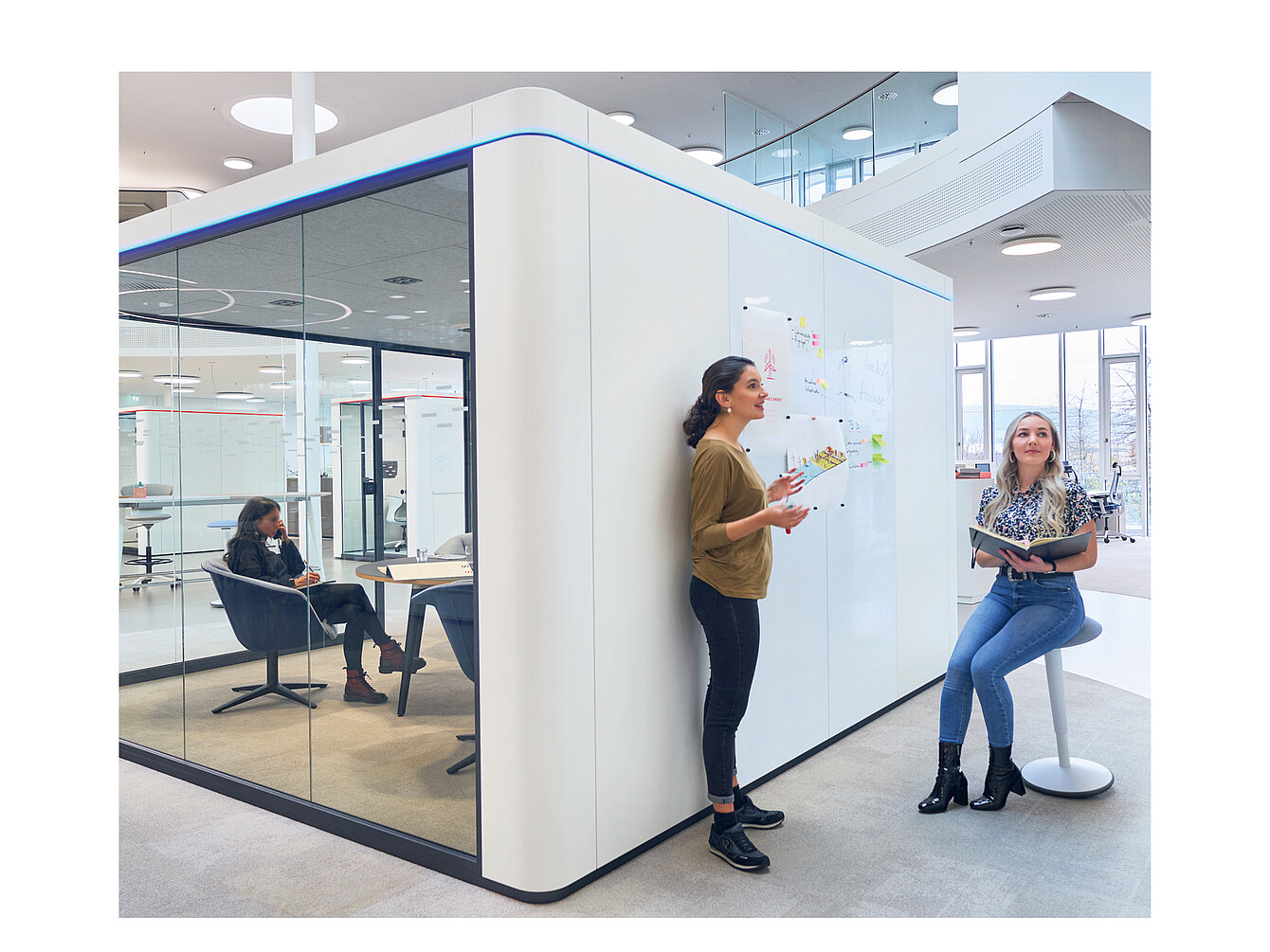

Whiteboard panel on exterior wall

Design features

se:cube max is available in three sizes and various furnishing options. Its technical equipment and optional elements make the system a top-class workstation.

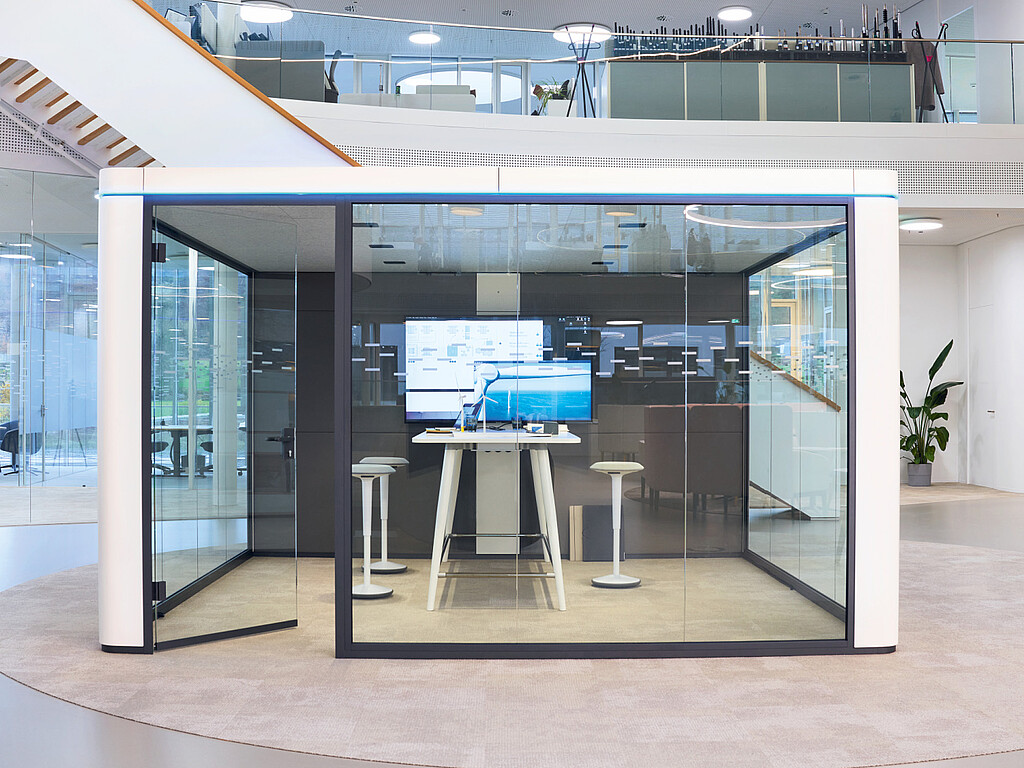

Discover more about se:cube max by clicking on the marker in the image.

All-round presence lighting

Glowing red or blue LED line indicates that the room is occupied

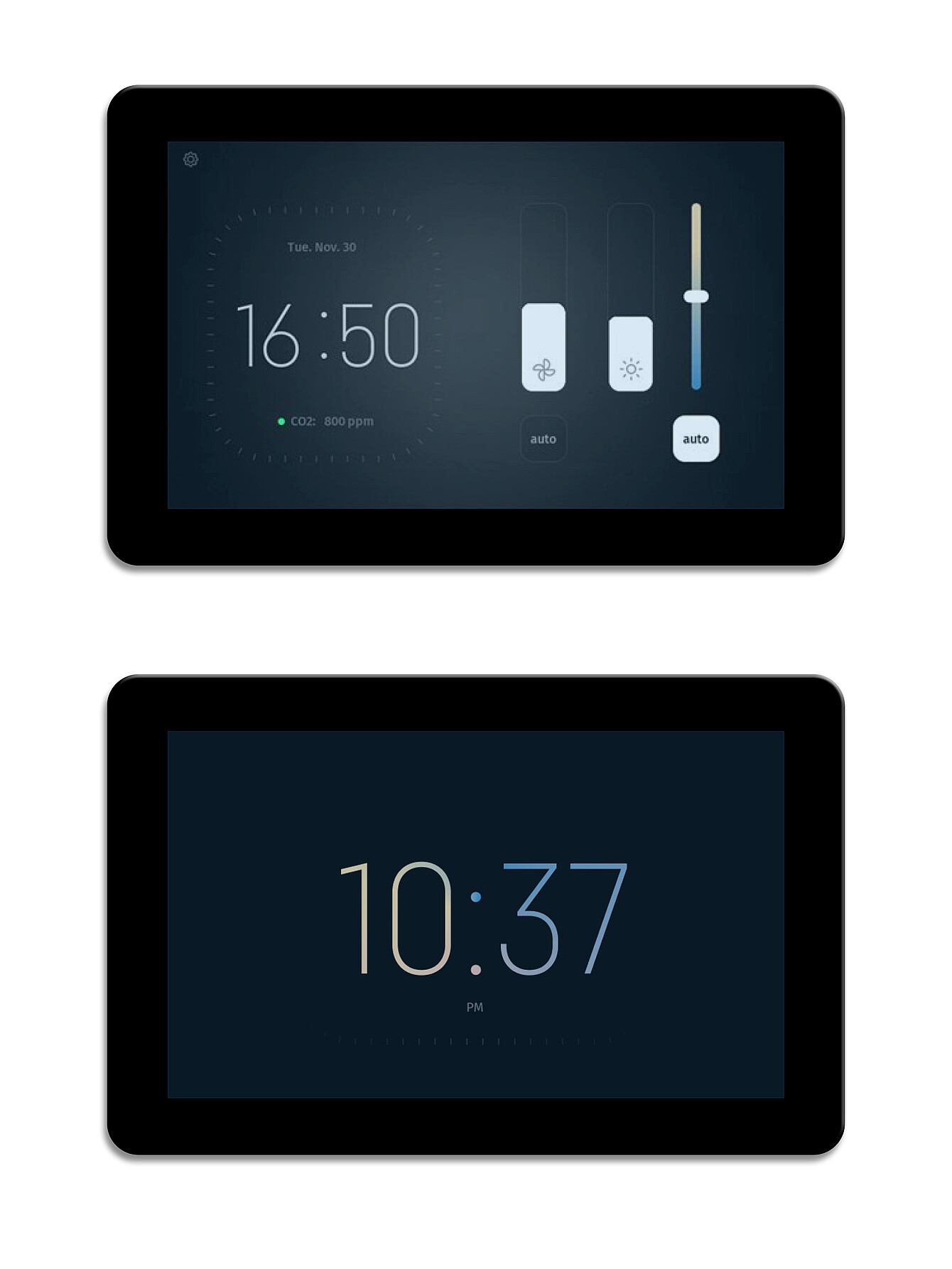

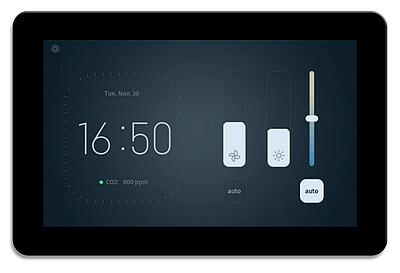

Controls (lighting/ventilation)

Fully automatic control of lighting and ventilation via the presence detector in the technical panel
Remote switch for manual control

Power and data cabling

Connections for 2× power, 1× USB charger (A/C) in the technical panel
Additional two power sockets if a monitor is mounted

Beleuchtung

Meeting lighting set-up:

2 dimmable LED panels
Remote switch for manual control
2 LED panels with colour temperature change and HCL control (incl. remote switch)

Workshop lighting set-up:

4 or 6 recessed LED luminaries integrated flush into the ceiling for illumination of the entire room
Remote switch for manual control

Door

10.76 mm laminated safety allglass door with an intermediate acoustic foil and lowerable floor seal
Lock case with a dummy cylinder allows for use of customer-specific locking systems

Magnetic closure

The magnetic closure ensures that the door is pulled towards the seal on all sides

Wheelchair-accessible use

Without a door threshold, thus enabling wheelchair-accessible use

Exterior wall panels

Panels in melamine, clear white
Melamine, painted
Writable whiteboard surface

Glass walls

12.76 mm laminated safety glass with an intermediate acoustic foil
Glass manifestation film at eye level
Glass manifestation for wheelchair-accessible use

Interior technical wall

Covered with recycled PET felt
Fabric-covered panels
central panels to the left and right as writable whiteboard with integrated magnetic strip at the top and pen and sponge holder at the bottom

1. All-round presence lighting

Glowing red or blue LED line indicates that the room is occupied

2. Controls (lighting/ventilation)

Fully automatic control of lighting and ventilation via the presence detector in the technical panel
Remote switch for manual control

3. Power and data cabling

Connections for 2× power, 1× USB charger (A/C) in the technical panel
Additional two power sockets if a monitor is mounted

4. Beleuchtung

Meeting lighting set-up:

2 dimmable LED panels
Remote switch for manual control
2 LED panels with colour temperature change and HCL control (incl. remote switch)

Workshop lighting set-up:

4 or 6 recessed LED luminaries integrated flush into the ceiling for illumination of the entire room
Remote switch for manual control

5. Door

10.76 mm laminated safety allglass door with an intermediate acoustic foil and lowerable floor seal
Lock case with a dummy cylinder allows for use of customer-specific locking systems

6. Magnetic closure

The magnetic closure ensures that the door is pulled towards the seal on all sides

7. Wheelchair-accessible use

Without a door threshold, thus enabling wheelchair-accessible use

8. Exterior wall panels

Panels in melamine, clear white
Melamine, painted
Writable whiteboard surface

9. Glass walls

12.76 mm laminated safety glass with an intermediate acoustic foil
Glass manifestation film at eye level
Glass manifestation for wheelchair-accessible use

10. Interior technical wall

Covered with recycled PET felt
Fabric-covered panels
central panels to the left and right as writable whiteboard with integrated magnetic strip at the top and pen and sponge holder at the bottom

se:cube models compared

se:cube S

se:cube M

se:cube L

se:cube max S

se:cube max M

se:cube max L

SIZE (W x D x H)

1.5 x 1 x 2.32 m

SIZE (W x D x H)

2 x 1.5 x 2.32 m

SIZE (W x D x H)

2,5 x 2,5 x 2,32 m

SIZE (W x D x H)

3 x 3 x 2.4 m

SIZE (W x D x H)

3 x 4 x 2.4 m
4 x 3 x 2.4 m

SIZE (W x D x H)

4 x 4 x 2.4 m

SUITABLE FOR

1 person

SUITABLE FOR

4 persons maximum

SUITABLE FOR

6 persons maximum

SUITABLE FOR

4 persons maximum

SUITABLE FOR

6 persons maximum

SUITABLE FOR

8 persons maximum

EXAMPLES
FOR USE

Phone calls
Concentrated individual work
Video and web conferences

EXAMPLES
OF USE

Concentrated work
Video and web conferences
Working in pairs

EXAMPLES
OF USE

Video conferences
Brainstorming sessions
Meetings

EXAMPLES
OF USE

Meetings
Workshops
Temporary single office

EXAMPLES
OF USE

Meetings
Workshops
Temporary single/double office

EXAMPLES
OF USE

Meetings
Workshops
Temporary single/double office

WHEELCHAIR-ACCESSIBLE

COMPLETE AIR EXCHANGE

In 43 sec.

COMPLETE AIR EXCHANGE

In 1.6 min

COMPLETE AIR EXCHANGE

In 3.5 min

COMPLETE AIR EXCHANGE

In 3.7 min

COMPLETE AIR EXCHANGE

In 5 min

COMPLETE EXCHANGE OF AIR

In 6.7 min

GLAZING

Possible on one or two sides

GLAZING

Possible on one or two sides

GLAZING

Possible on one or two sides

GLAZING

Possible on one, two or three sides

GLAZING

Possible on one, two or three sides

GLAZING

Possible on one or two sides

DOOR OPENING

To the outside

DOOR OPENING

To the outside

DOOR OPENING

To the outside

DOOR OPENING

To the inside

DOOR OPENING

To the inside

DOOR OPENING

To the inside

Sustainable production

We purchase around two thirds of the steel, aluminium and wood which we require to produce our products in Germany and almost all the rest from Europe, this helps us to avoid long delivery routes whilst, at the same time, boosting the local economy. We use materials which have been tested and assessed with respect to potentially adverse effects on human health and the environment.
