black dot

Swivel chair

Pinpoint dynamic sitting: Sedus black dot stands for long-lasting quality, sophisticated design and numerous feature options. Sitting still for a prolonged period of time takes its toll on the body and on our mental performance. Thanks to the flexibility of the Sedus dorsokinetic mechanism, the user stays mobile and always in balance. This is good for the intervertebral discs, and relaxes the neck and back muscles, allowing the head to move freely.

Design black dot & black dot 24: Michael Kläsener (Sedus Design Team)
Design black dot net: Markus Dörner

Design your own unique Sedus product – after all, maximum comfort requires customised solutions.

Our configurator guides you step by step through the various options and customisation possibilities of the product. At the end of the configuration process, you can request a non-binding quote, download images and planning data and test the product directly in the room using augmented reality.

You can call up your personal configuration again at any time using your personal PIN code – just save it, come back later and make adjustments. Let's go!

CONFIGURE PRODUCT NOW

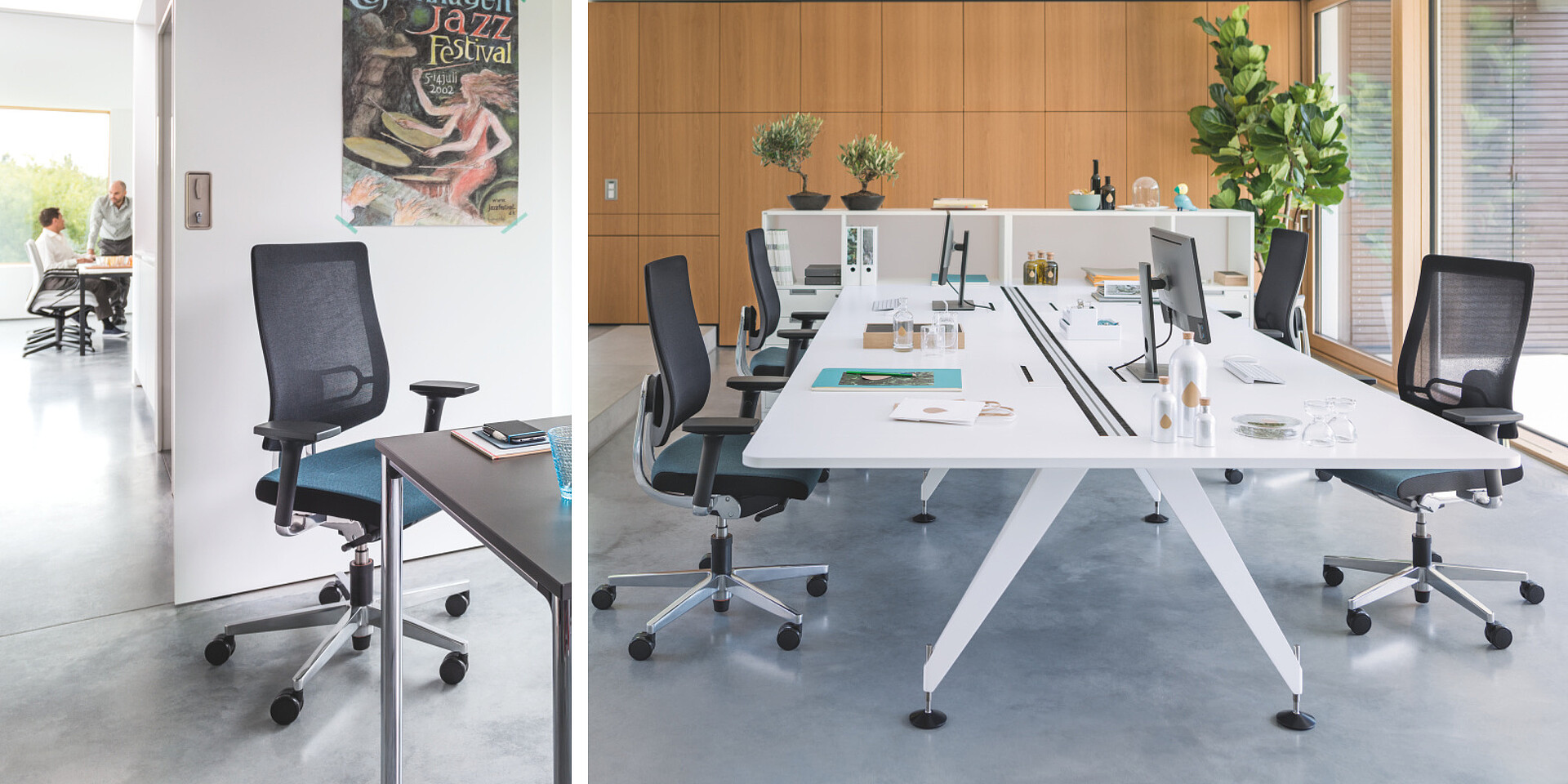

Impressions

Innovative technology for maximum well-being

Whether classically upholstered or with a transparent mesh backrest – all models in the Sedus black dot series impress with their sophisticated technology, perfect individual user customisation options and absolutely smooth functioning. What’s unique about Sedus’ patented dorsokinetic mechanism is that the backrest is attached at only one point by a flexible joint. Whereas other chairs are rigid, Sedus black dot is dynamic and supports the back, even when swivelling or turning to the side.

Classic upholstered comfort and transparent lightness

The sophisticated upholstery system and the first-class finish emphasise the high quality of this family of chairs, and contribute towards its longevity. With its airy membrane backrest, Sedus black dot net is extremely slim and light. The covering ensures optimal pressure distribution of body weight. The patented Sedo-Lift mechanism also contributes towards excellent seating comfort. It is used to adjust the seat height easily, continuously and free from wear. At the same time, the Sedo Lift mechanism guarantees a soft, pleasant suspension regardless of the chosen seat height.

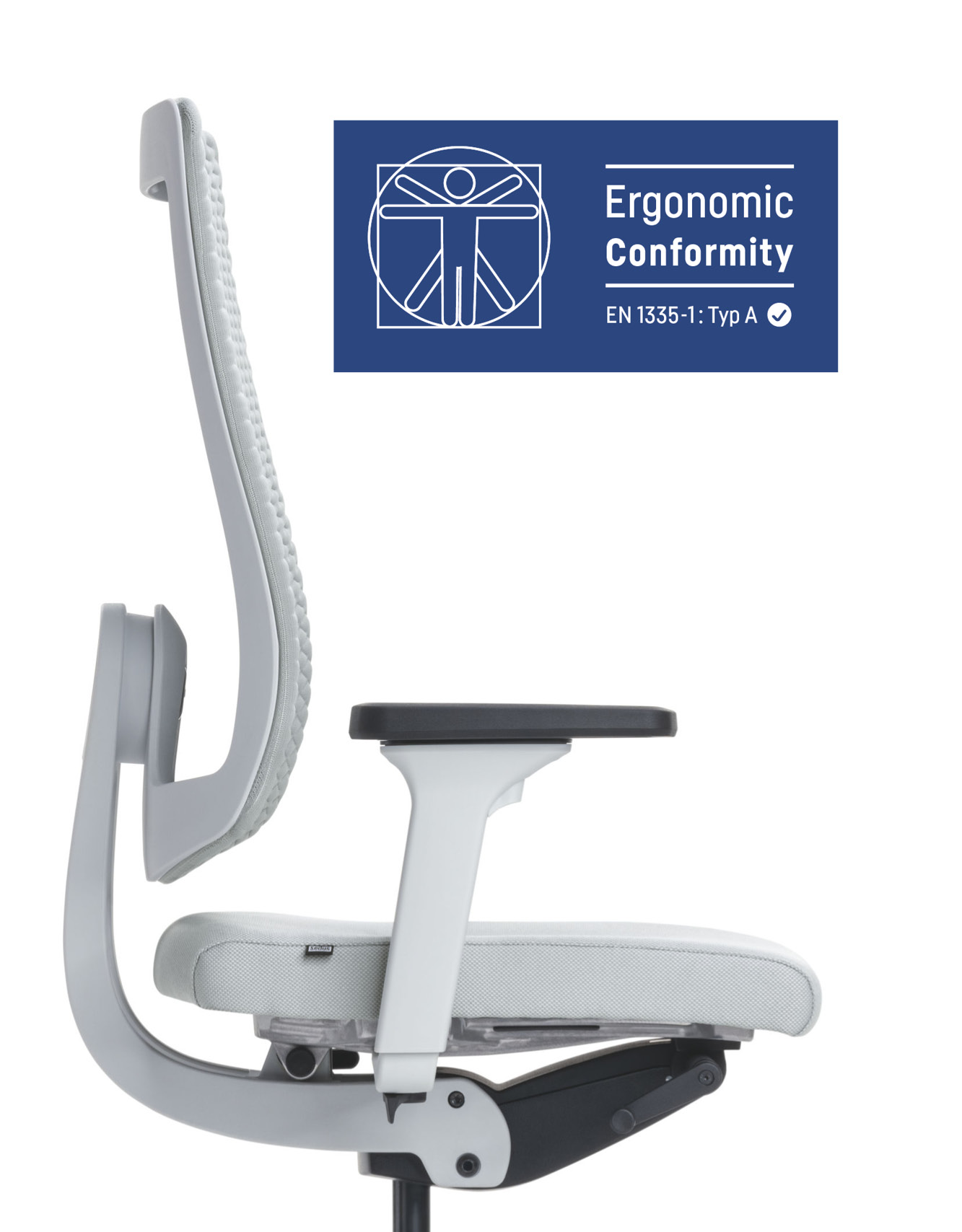

DIN EN-1335-1:2023 Type A

Follows the most stringent requirements, is state of the art and provides comfortable seating for everyone. With the new office chair DIN EN 1335-1:2023 Type A standard, black dot meets the requirements for a diverse user base and their various demands.

Variety

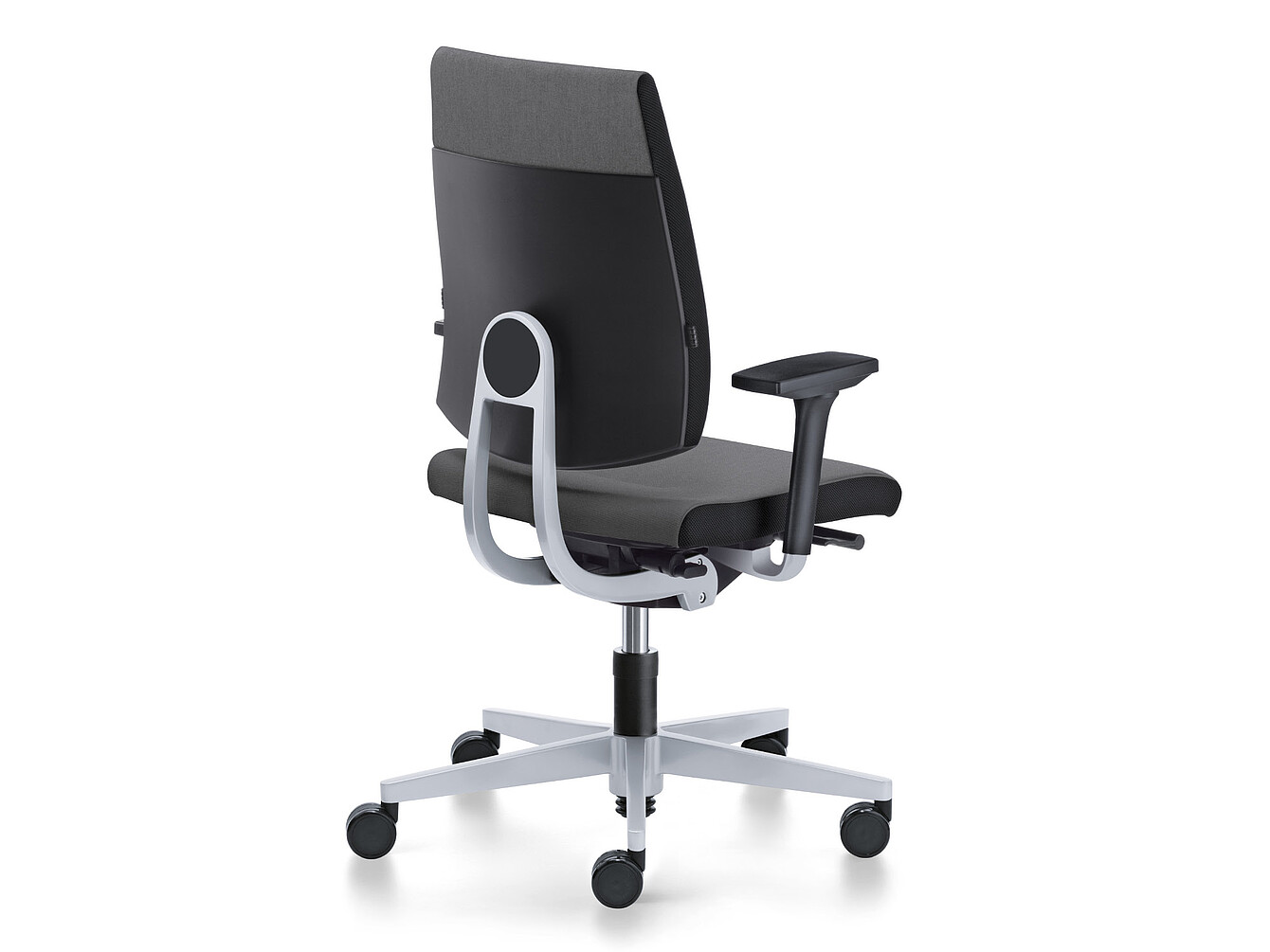

black dot

with normal, upholstered backrest, height-adjustable armrests, black aluminium base.

black dot

with medium, upholstered backrest, 4D adjustable armrests, white aluminium base.

black dot

with high, upholstered backrest, headrest, 4D adjustable armrests, polished aluminium base.

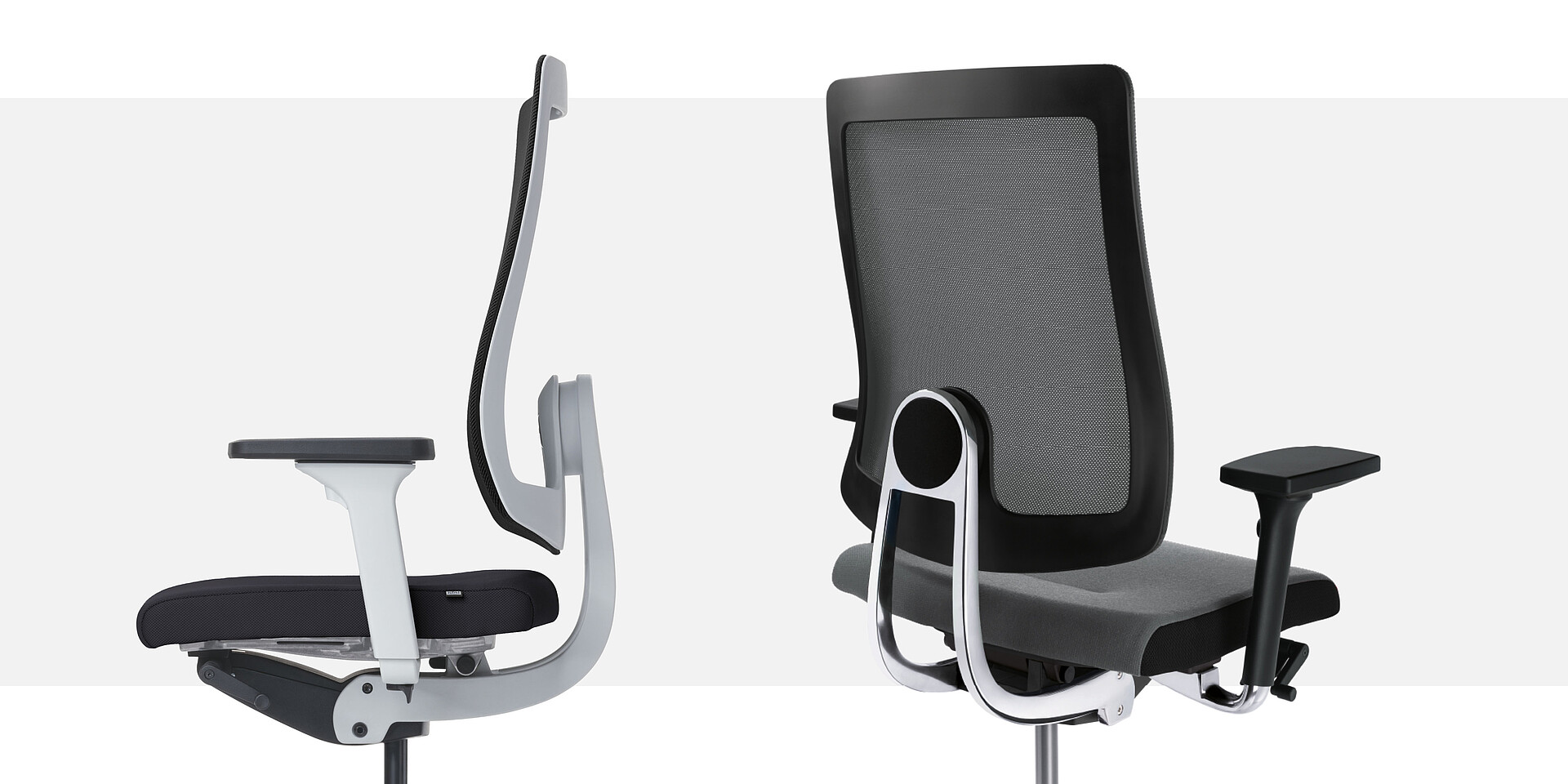

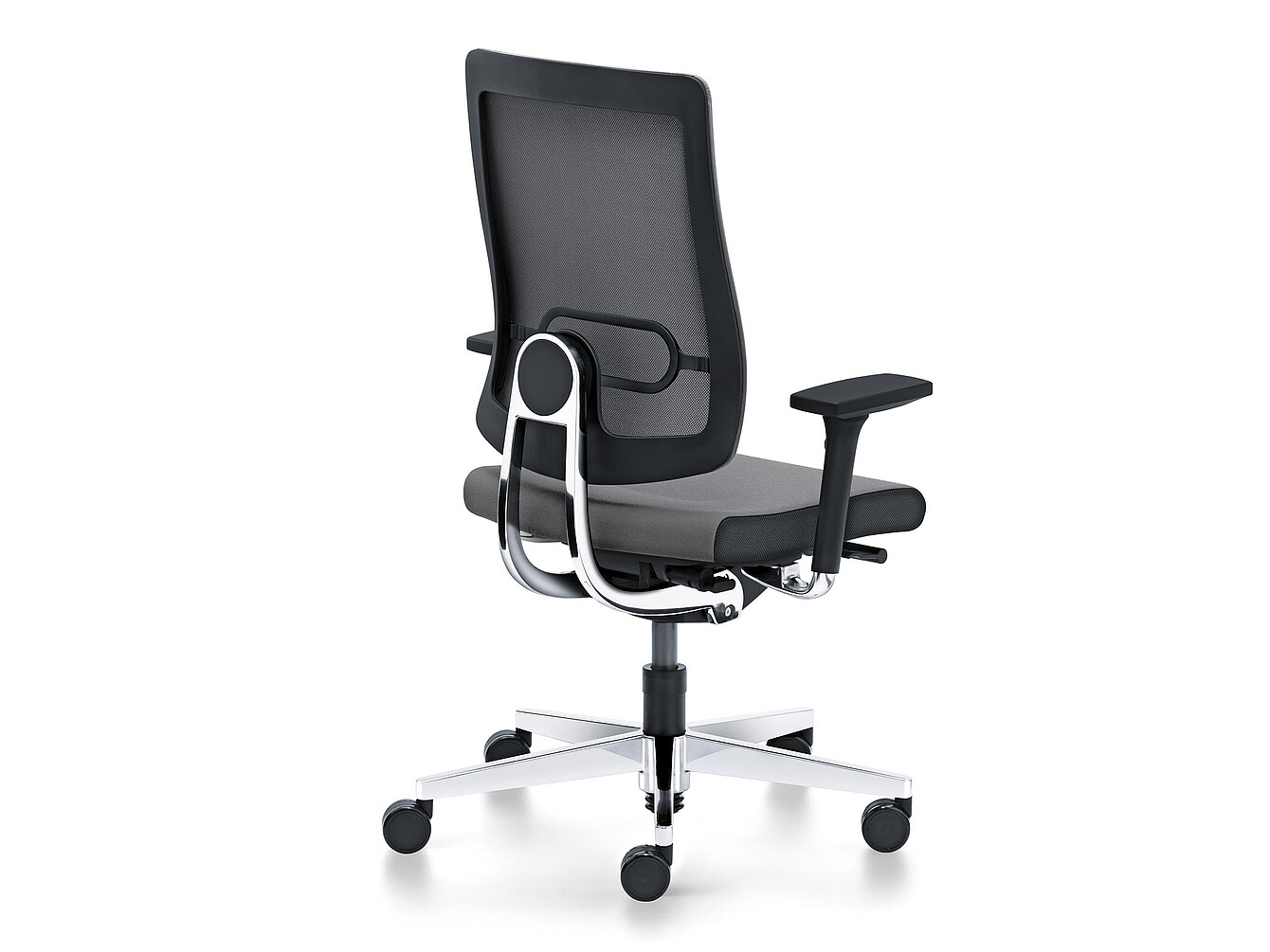

black dot net

with membrane-covered backrest, height-adjustable lumbar support, height-adjustable armrests, polished aluminium base.

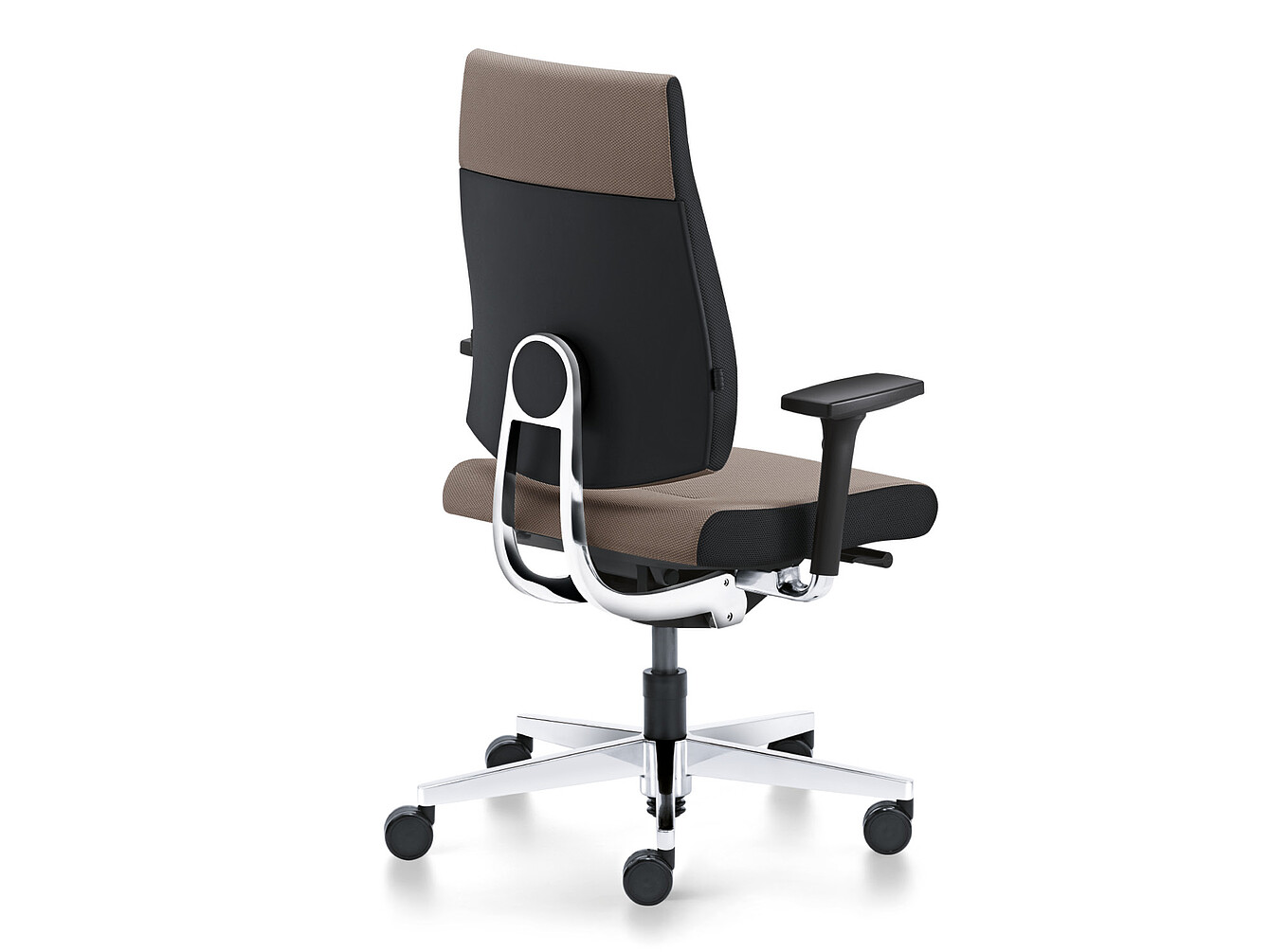

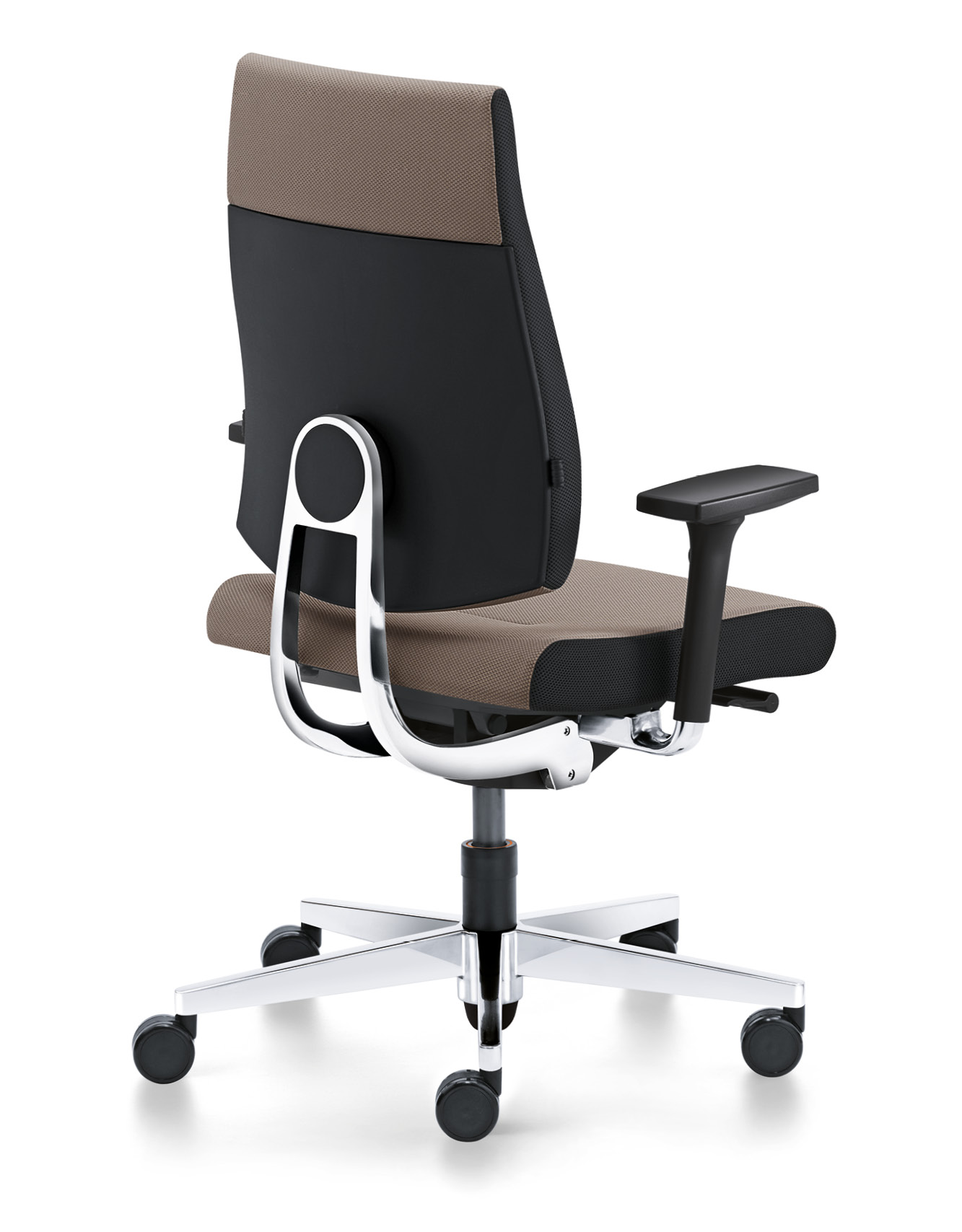

black dot 24

with a high, upholstered or membrane-covered backrest, a sliding seat with thicker and wider seat upholstery, the similar mechanism with reinforced springs and adjustable armrests, user weight up to 150 kg.

4-leg model

with upholstered backrest, chromed frame (stackable)

4-leg model

with membrane-covered backrest, chromed frame (stackable)

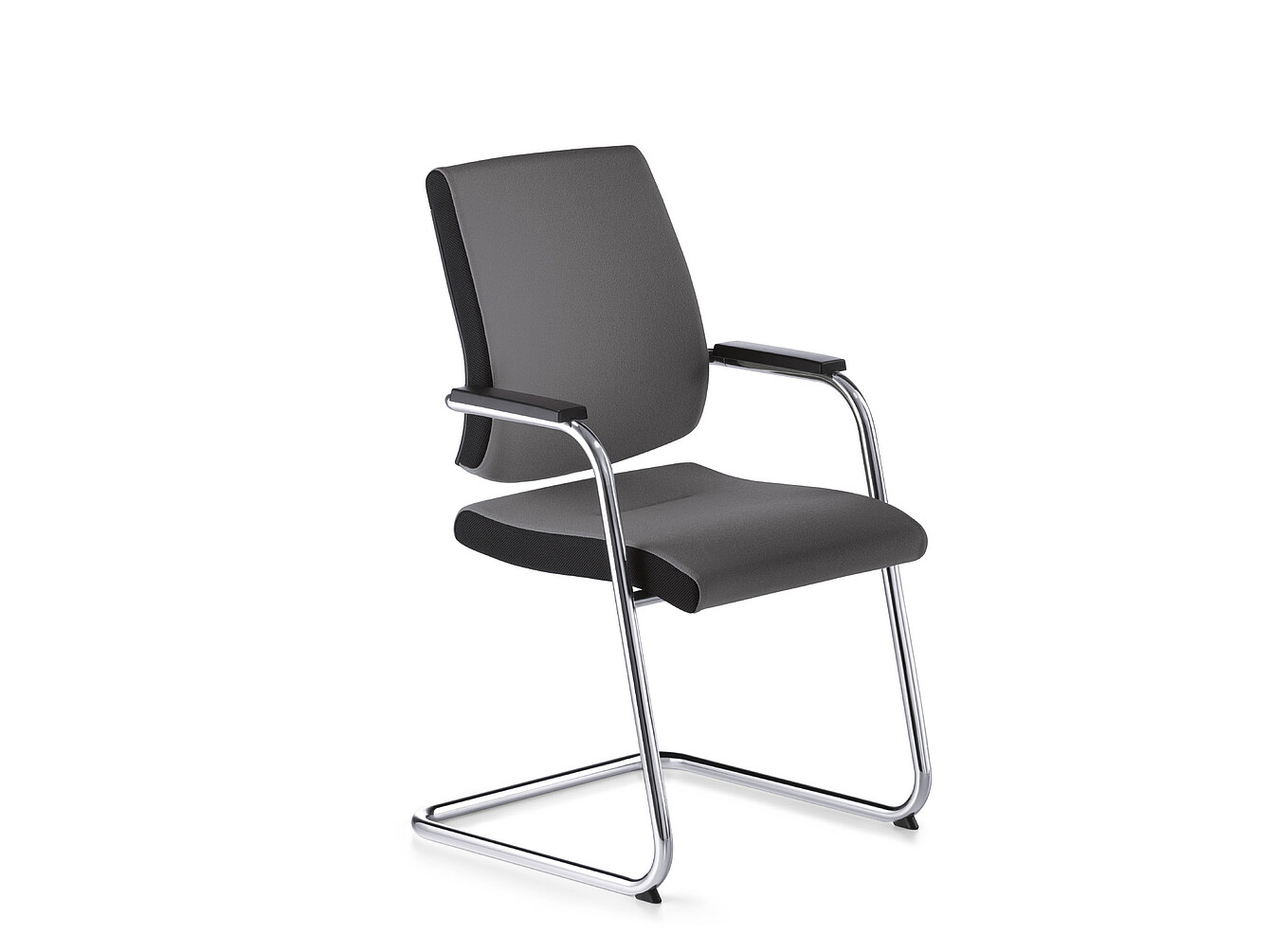

Cantilever chair

with upholstered backrest, chromed frame (optionally stackable)

Cantilever chair

with membrane-covered backrest, chromed frame (optionally stackable)

Details

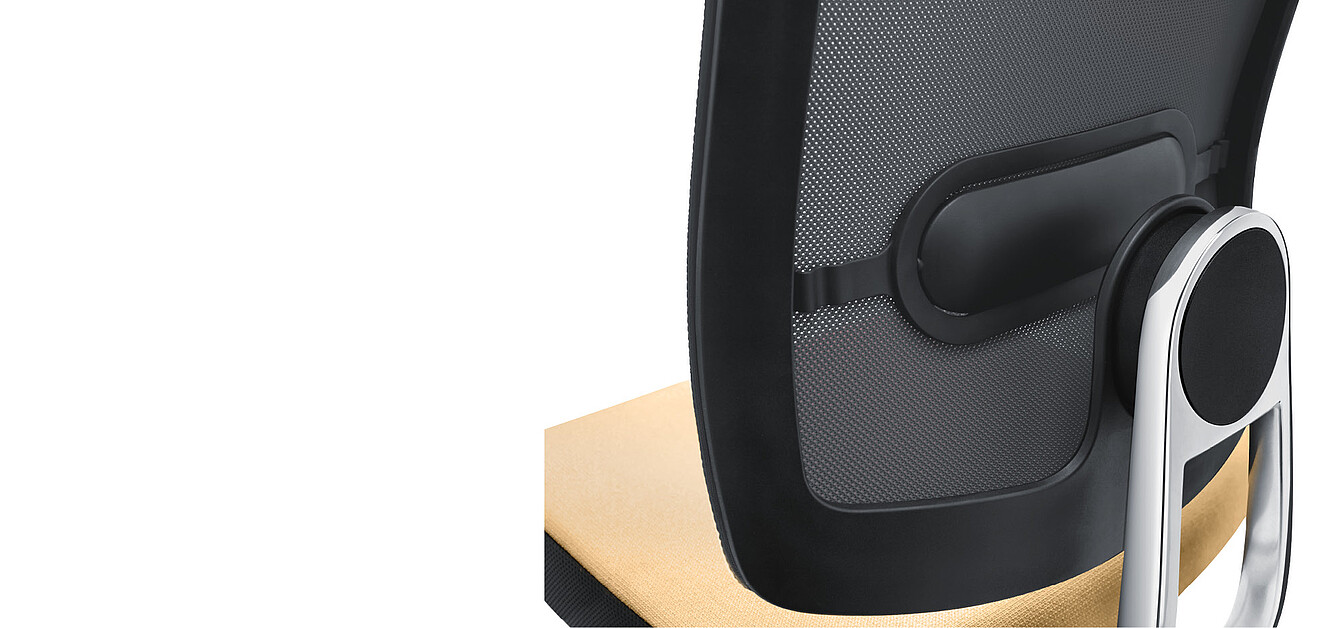

Lumbar support

The membrane backrest version is available with height adjustment only or with additional depth adjustment.

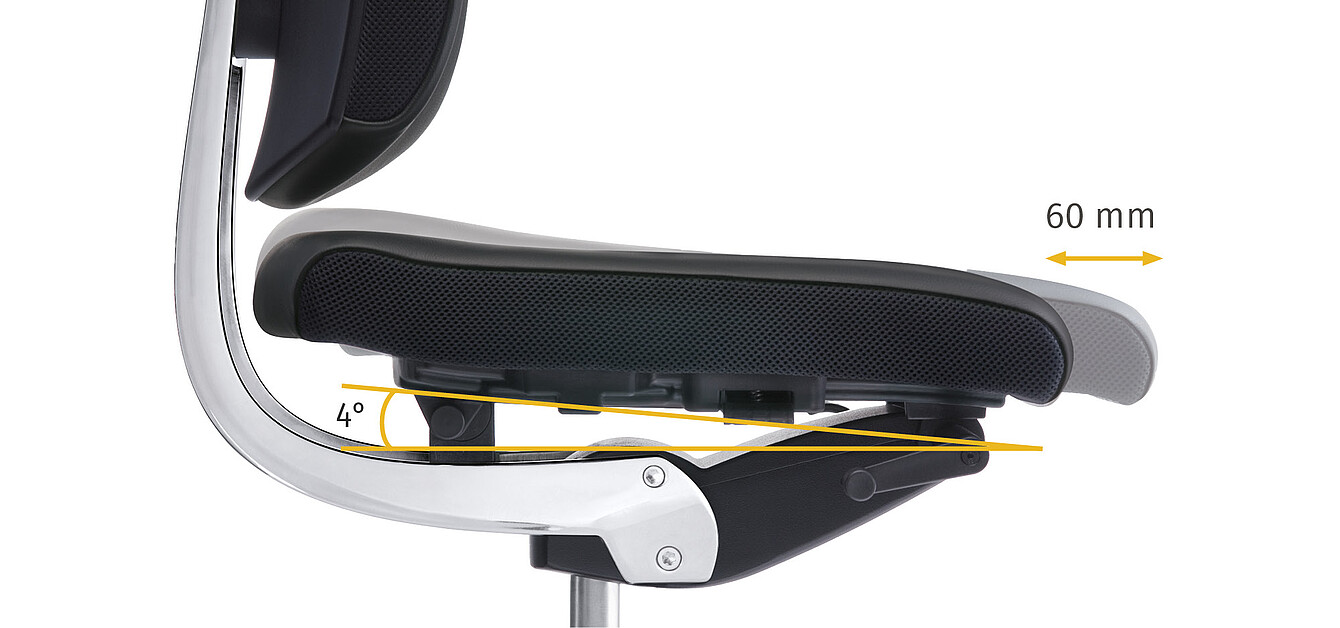

Sliding seat

The patented adjustable seat depth mechanism can be altered by up to 60 mm, both forwards and backwards.

Basic armrests

Height- and, optionally, depth-adjustable.

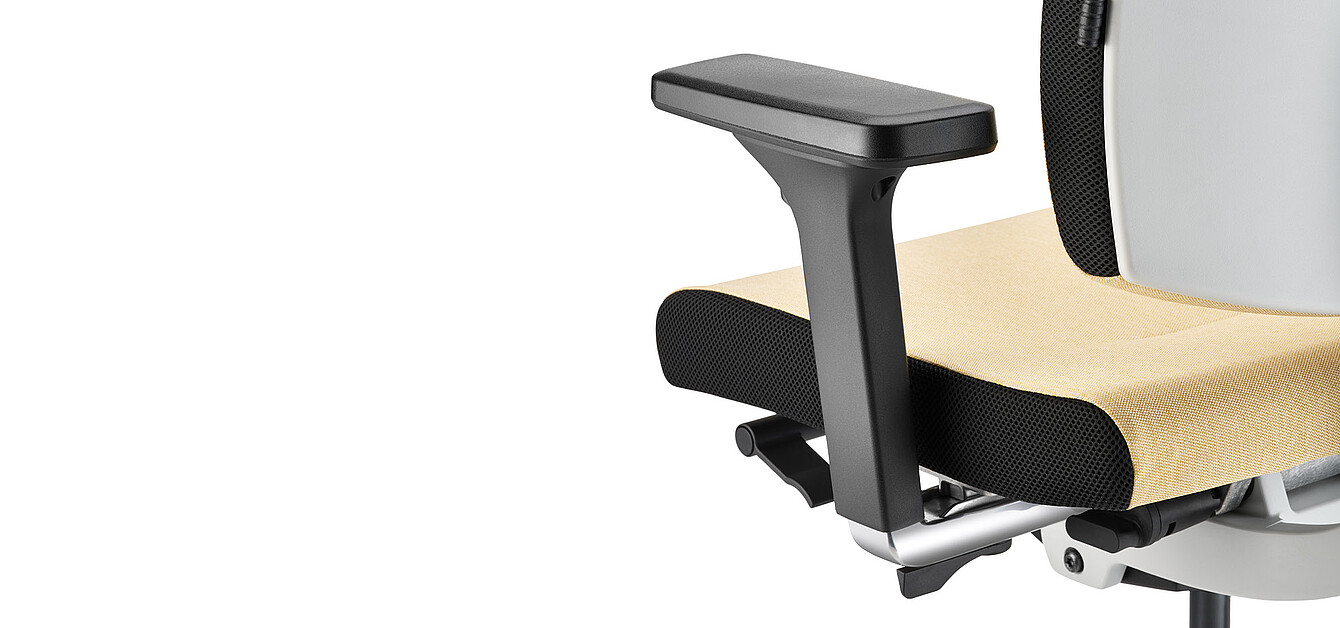

4D armrests

Optionally with Softtouch.

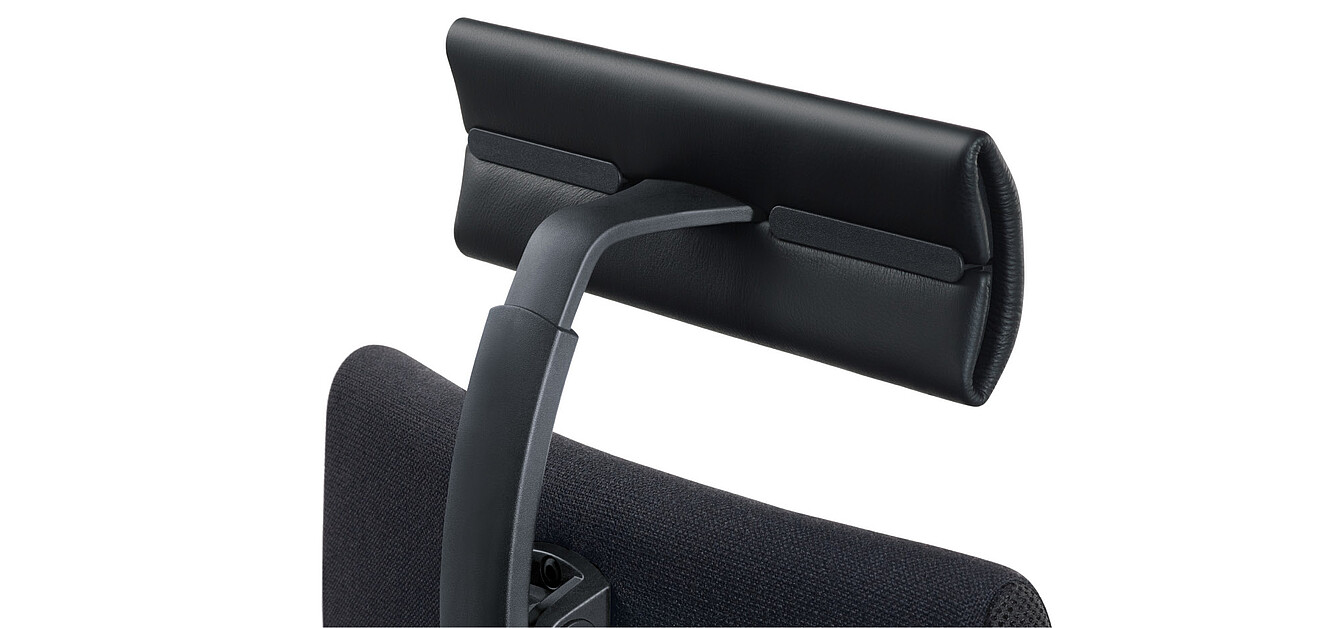

Comfortable

The headrest is individually height- and depth-adjustable and takes the load off the pectoral girdle.

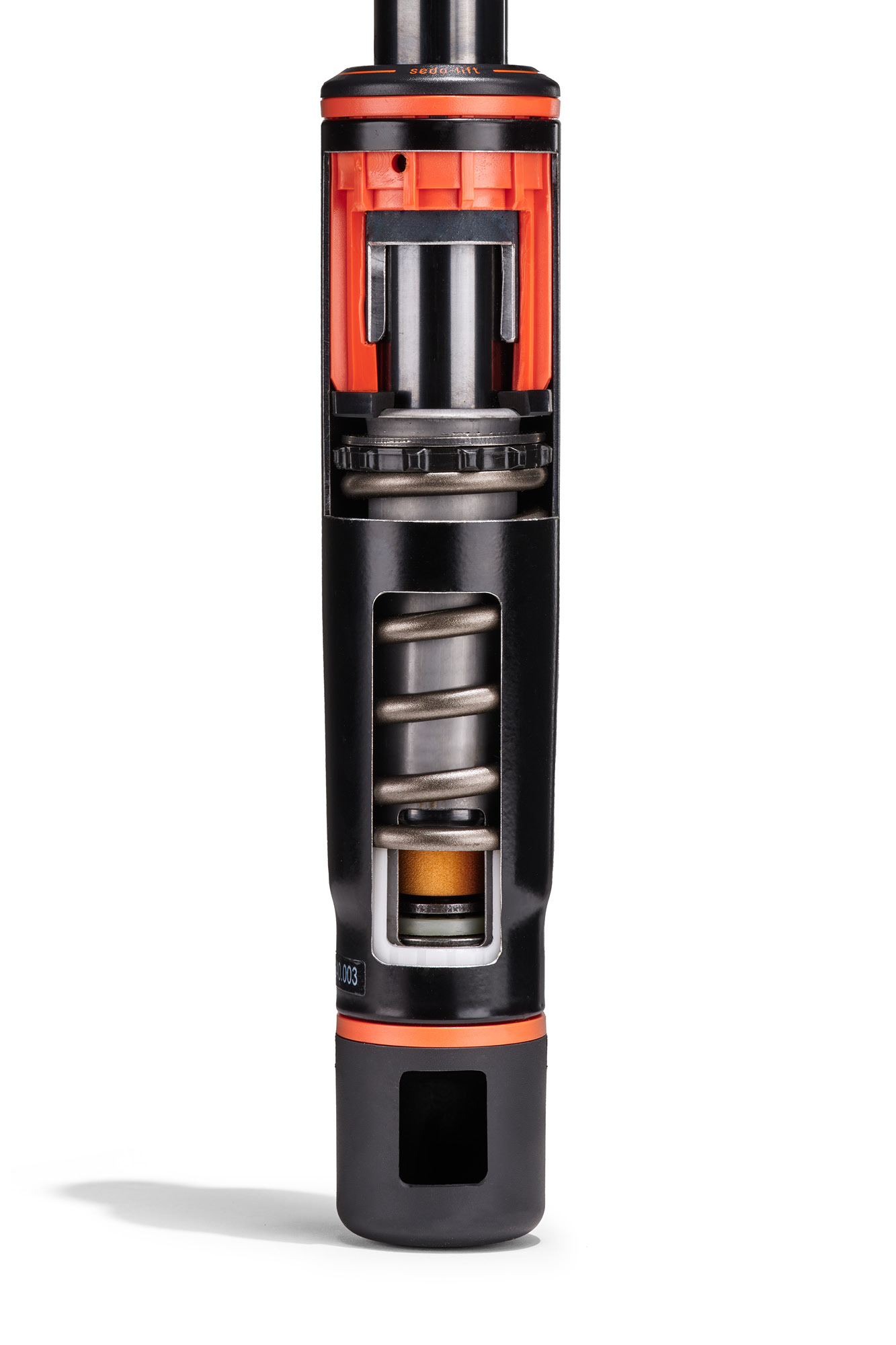

Sedo-Lift

Even in the lowest position, this seat-height adjustment - with worldwide patent - provides a back-friendly "soft landing" when you sit down.

black dot model compare

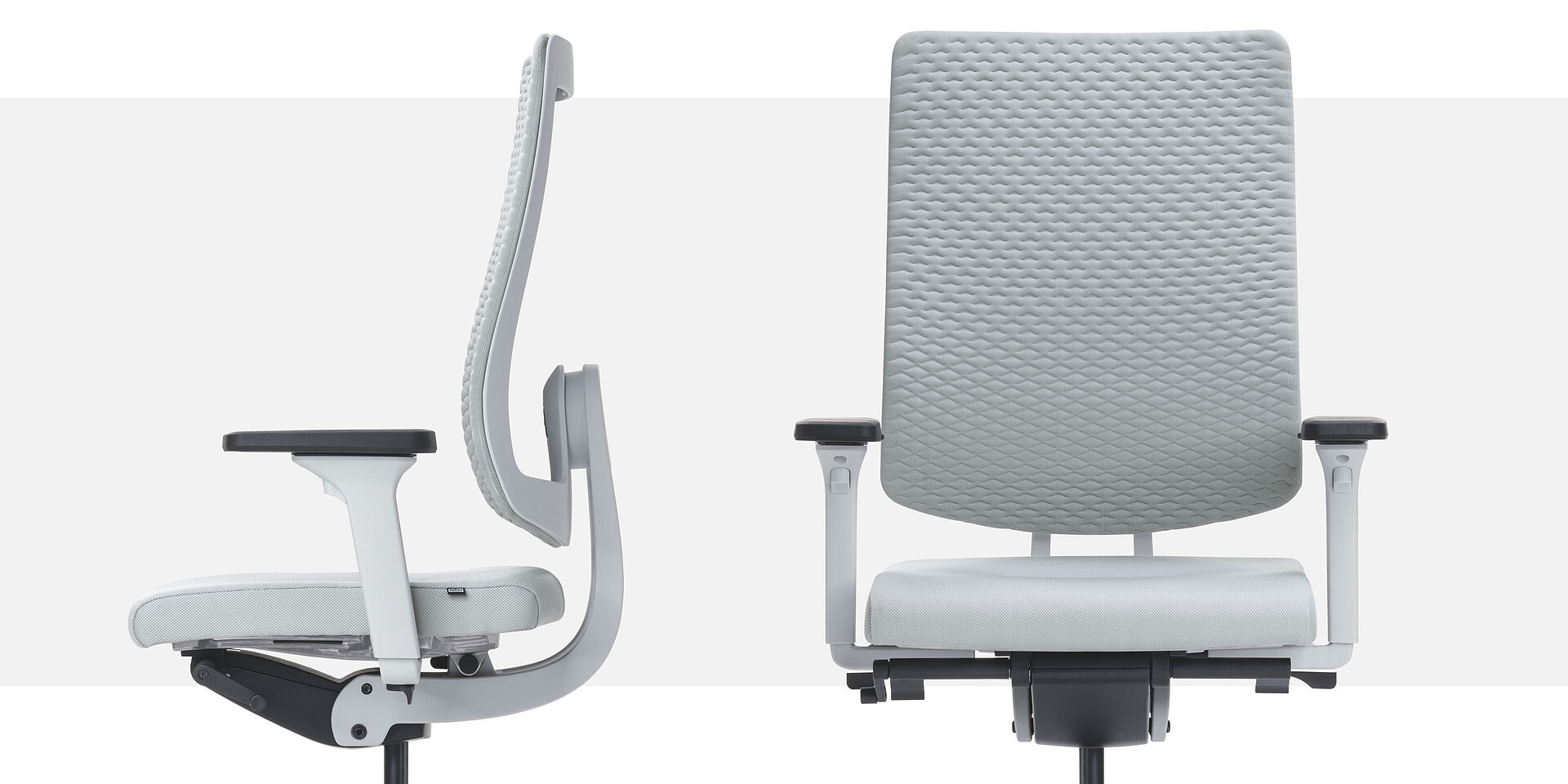

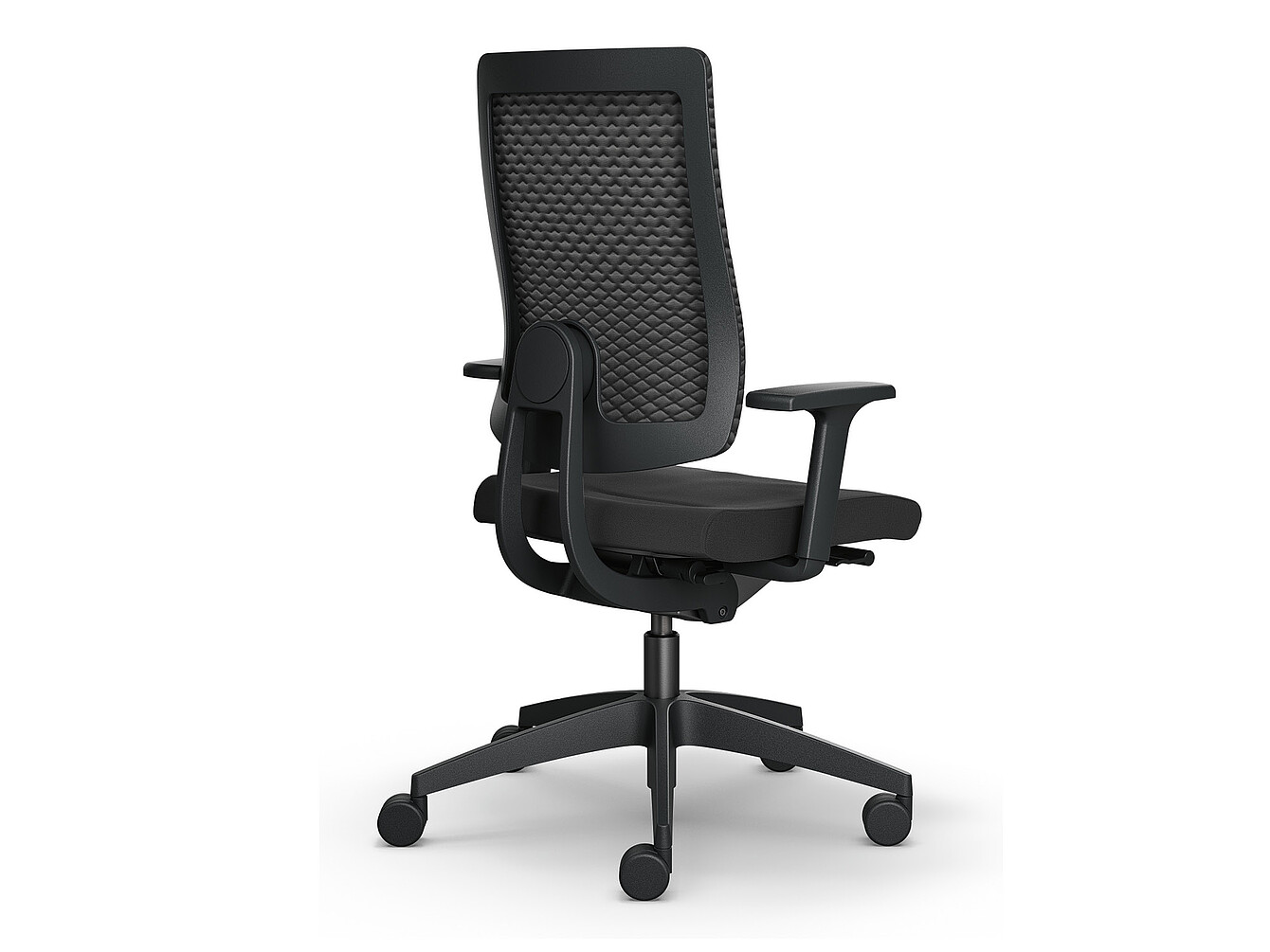

black dot air

black dot

black dot net

black dot+ ID

black dot 24

Backrest

3D knitted membrane in
5 colours

Backrest

Upholstered

Backrest

Mesh membrane in 5 colours

Backrest

Upholstered with individual ergonomic inlay upholstery

Backrest

Upholstered or mesh membrane in 5 colours

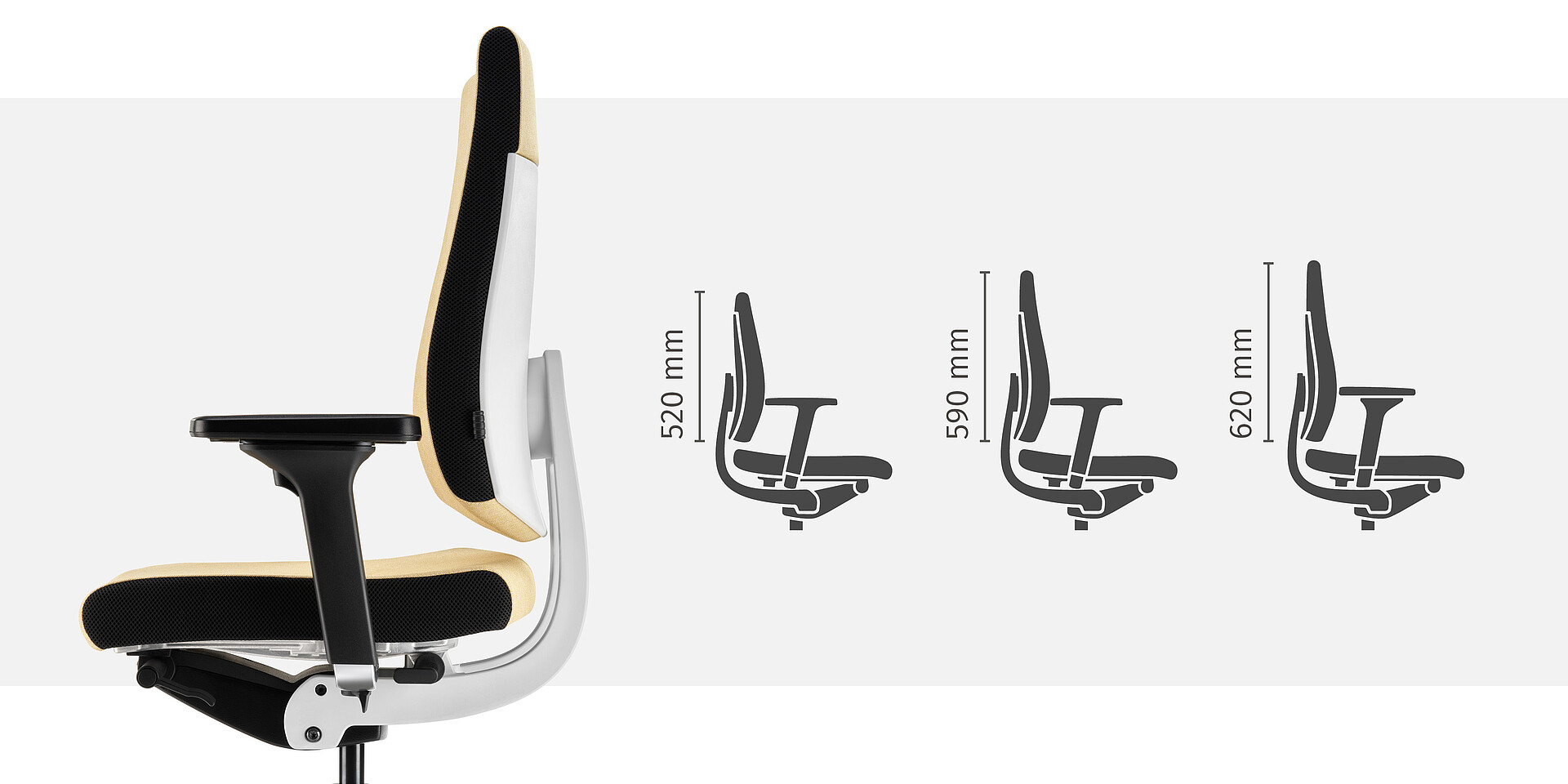

High backrest

1 height
(high)

High backrest

3 heights available
(low, medium, high)

High backrest

1 height
(high)

High backrest

3 heights available
(low, medium, high)

High backrest

1 height
(high)

User weight

130 kg

User weight

130 kg

User weight

130 kg

User weight

130 kg

User weight

150 kg

Model colour

Black, pale grey

Model colour

Black, pale grey

Model colour

Black, pale grey

Model colour

Black

Model colour

Black

Base

Plastic

Base

Aluminium, plastic

Base

Aluminium, plastic

Base

Aluminium

Base

Aluminium

Armrests

Height-adjustable plastic armrests*

Armrests

Height-adjustable plastic armrests*

Armrests

Height-adjustable plastic armrests*

Armrests

4D armrests with soft-touch covers

Armrests

4D armrests with soft-touch covers and polished aluminium support*

Height-adjustable lumbar support

Mechanism

Similar mechanism with tension control*

Mechanism

Similar mechanism with tension control*

Mechanism

Similar mechanism with tension control*

Mechanism

Similar mechanism with tension control* and forward tilt 0°, -2°, -4°

Mechanism

Similar mechanism with tension control*

Seat height adjustment

Sedo Lift III*

Seat height adjustment

Sedo Lift III*

Seat height adjustment

Sedo Lift III*

Seat height adjustment

Sedo-lift mechanism*

Seat height adjustment

Sedo-lift mechanism*

Dorsokinetics

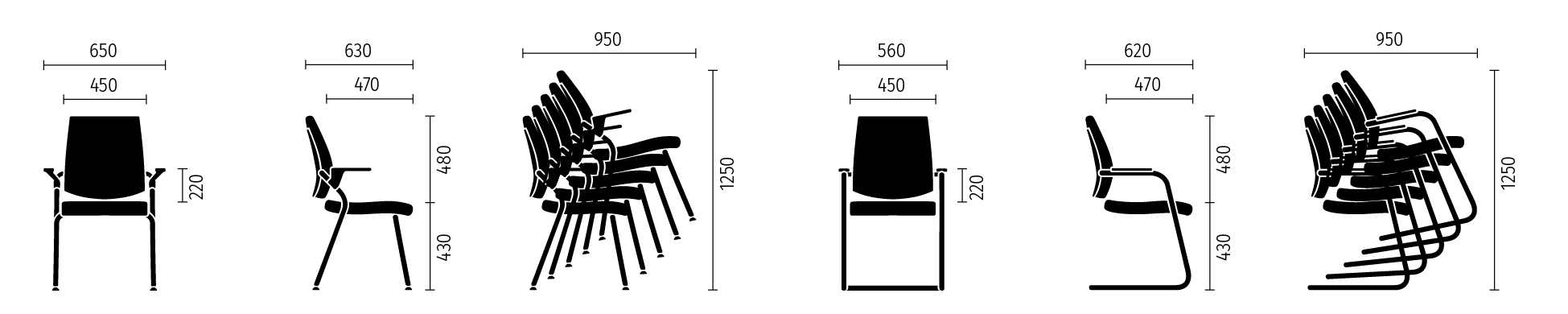

Matching counter chair

Matching visitor chair

Sustainable production

We purchase around two thirds of the steel, aluminium and wood which we require to produce our products in Germany and almost all the rest from Europe, this helps us to avoid long delivery routes whilst, at the same time, boosting the local economy. We use materials which have been tested and assessed with respect to potentially adverse effects on human health and the environment.

TO SEDUS SUSTAINABILITY

Sustainable production of black dot

Covers not glued into place
CFC-free foams
Galvanisation with chrome III
Use of certified upholstery fabrics in accordance with OEKO-TEX Standard 100
Produced using 100 % green electricity
Produced in accordance with EMAS III Environmental management
Produced in accordance with DIN ISO 14001 Environmental management
Produced in accordance with DIN EN 45001 Occupational safety

TO ENVIRONMENTAL PRODUCT INFORMATION

Video: Recycling Sedus black dot & black dot net

Options

	standard	optional
Armrests	Height-adjustable armrests	4D armrests with soft-touch covers 4D armrests with soft-touch covers and polished aluminium support 4D armrests with 360° rotatable soft-touch covers (possible in combination with DIN EN 1335-1:2023 type A Without armrests
Mechanism	Similar mechanism with tension control	Similar mechanism with tension control and forward tilt 4°
Seat height-adjustment	Sedo-Lift mechanism III	Gaslift Gaslift for counter design with footring (possible in combination with aluminium base 2203)
Base	Aluminium base black	Aluminium base white aluminium Aluminium base polished Base and backrest support made of plastic – the model colour determines the foot colour
Model colour / plastic parts	black	light grey (possible in combination with plastic base 2403)
Miscellaneous	Hard castors for soft floors	Soft castors for hard flooring – not for counter design Sliding seat (adjustment range 70 mm) – not for counter design Fire protection version in combination with the cover fabrics Fame, One or Step Backrest support with stronger backrest pressure Without transportation protection for castors Footrest for counter frame Different cover for backrest Neck support with height and tilt adjustment for bd-103 in black imitation leather for models in fabric, for models in leather, the leather colour matches the upholstery choice Coat hanger for bd-103 in conjunction with code 7007
Norm	DIN EN 1335-1:2023 untyped	DIN EN 1335-1:2023 type A (includes code 1503, 2203, 3424, 6003)

Technical specifications

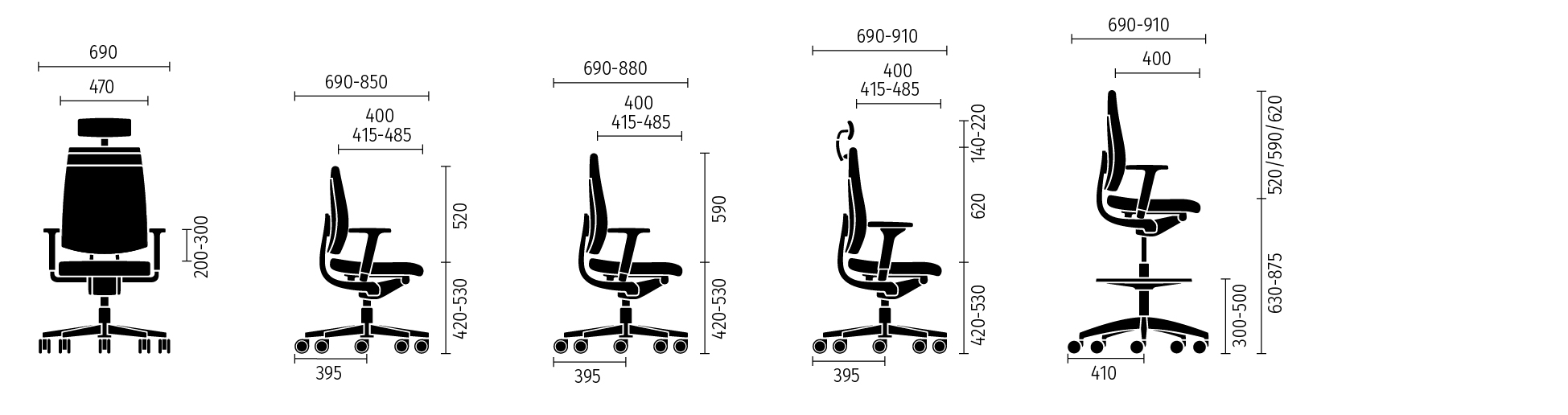

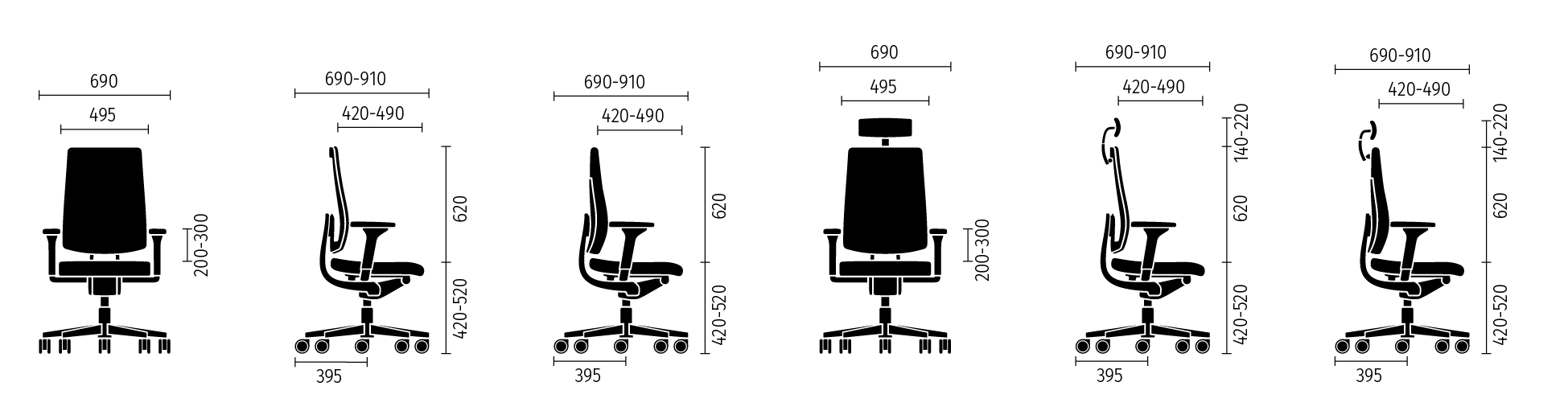

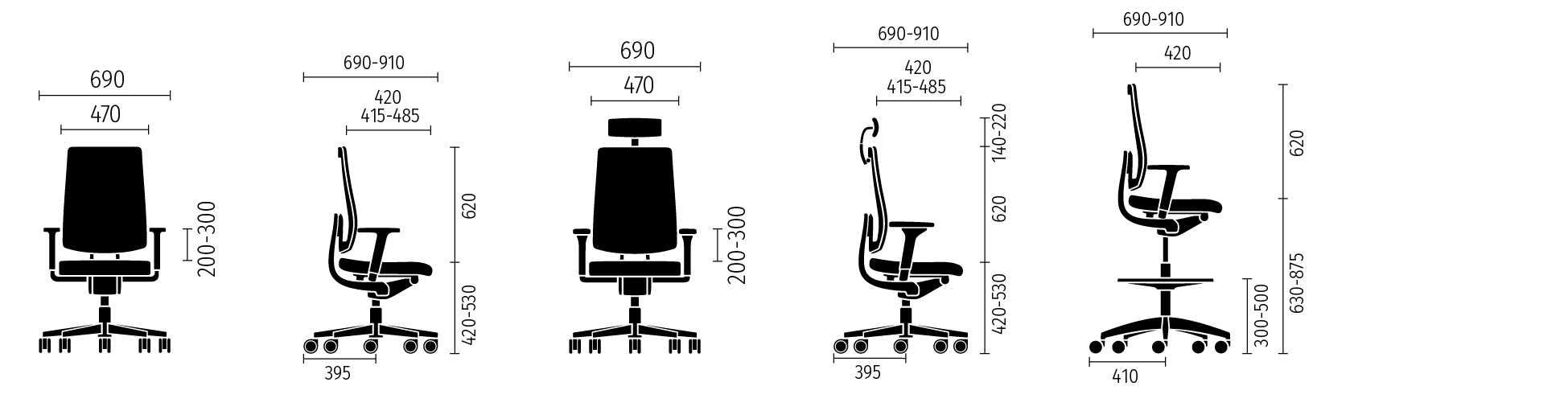

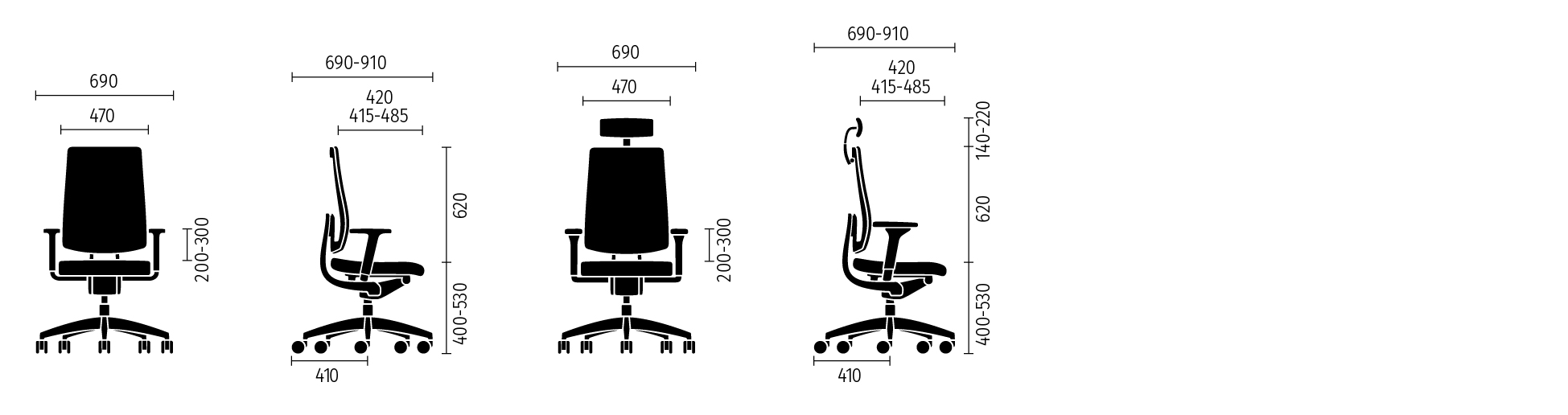

Dimensions
black dot
User weight	• Recommended for user weights up to 130 kg
Seat	• Anatomically shaped seating surface with pelvis support, seat hollow and rounded front edge of seat • Shaped foam (polyurethane foam) • Width 470 mm, depth 420 mm • Optional sliding seat with seat depth 400 - 460 mm
Seat height-adjustment	• Sedo-lift mechanism III: complete cushioning of body weight, even in lowest seating position, no compression of the spine when sitting down provided by hydraulic interlock, completely free of wear and tear, mechanical failure or gas lift replacement, height adjustment between 420 - 530 mm • Optional gaslift for infinitely variable height adjustment 400 - 530 mm • Optional gaslift for counter design with footring
Base	• Aluminium base, powder-coated, black, white aluminium, white or polished aluminium • Optional plastic star base (glass-fibre reinforced polyamide), black or light grey • Hard or soft castors with 65 mm diameter • The backrest support always matches the star base, so a swivel chair with a polished star base automatically comes with a polished backrest support.
Backrest	• Integrated height-adjustable (80 mm) • Due to the dorsokinetic joint the backrest has an additional degree of freedom of 15° for backward movements and of 8° for lateral movements of the upper body • Backrest made of polypropylene • Upholstery thickness 50 mm • Back of backrest partially upholstered for pleasant feel to the touch • Side ends of the upholstery made of air-permeable material in different coloured knitted spacer fabric (black) • Optional for versions with the high backrest: neck support with height (80 mm) and tilt adjustment (25°), for fabric versions made of black vinyl; for leather versions, neck support in the selected leather • Optional coat hanger in conjunction with neck support
Armrests	• Height-adjustable plastic armrests (3611) in black, height adjustment 100 mm (200 - 300 mm), clear width 490 - 520 mm • Optionally available 4D adjustable armrests with Softtouch pads, in model colour (3414) or in black with polished aluminium support (3484), height adjustment 100 mm (200 - 300 mm), inside width 450 – 500 mm with parallel armrests, inside width 360 – 510 mm by swivelling the pads (distance between armrest front edges)
Mechanism	• Similar mechanism with tension control: balanced force curve due to coordinated spring concept • Seat and backrest move completely synchronised with the body • Synchronicity relationship between seat and backrest 1:2.7 • Adaptation to different user weights enables sensitive latching of the rapid adjustment mechanism (leaning pressure 450 - 1200N and 550 - 1500N (stronger spring) [10N = 1 kg]) • Backrest inclination to approx. 32°, can be locked in virtually continuously variable manner (11 different settings) • Permanent back support even when the backrest is inclined backwards at a wide angle, due to uniform force distribution of the mechanical springs • Optional seat tilt adjustment (+0°; -2°; -4°), less pressure against the thighs without the user sliding out of the seat pan
Standards / Certificates	• GS label by TÜV Rheinland LGA Products GmbH / DIN EN 1335 • Ergonomics Certificate by TÜV Rheinland LGA Products GmbH • Tested for harmful substances by TÜV Rheinland LGA Products GmbH • QUALITY OFFICE quality seal • GREENGUARD certified • AGR quality seal - Healthy Backs Campaign • Awarded BLAUER ENGEL • iF product design award 2007
Warranty	• 5 years • 30 years for Sedo-lift mechanism
